Seattle Computer Products --  500C  Disk Master

This was SCP's floppy disk controller board.

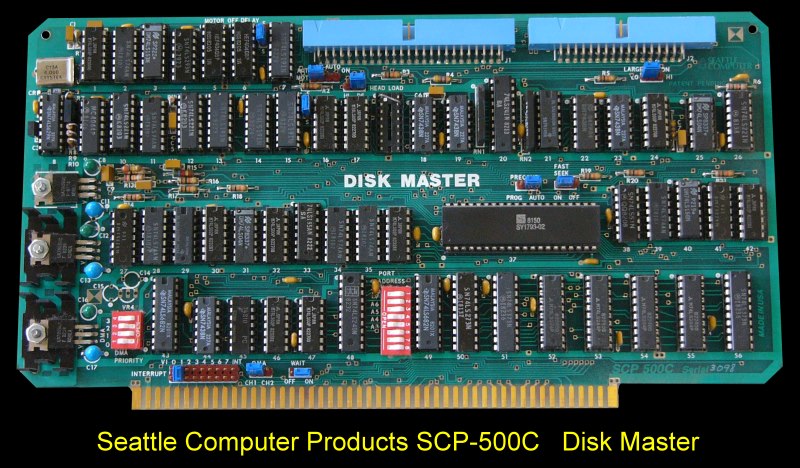

SCP Diskmaster

The board was IEEE-696 compatible and could accommodate 8" and 5" floppy drives, single and double density. It could even be used to control the infamous PerSci drives with their voice coil positioning mechanism.  It utilized the Western Digital 1793 LSI FDC chip.

The manual for this board can be obtained here.
