This was a modification of an earlier Hard disk and Cartridge tape controller Teletek had.

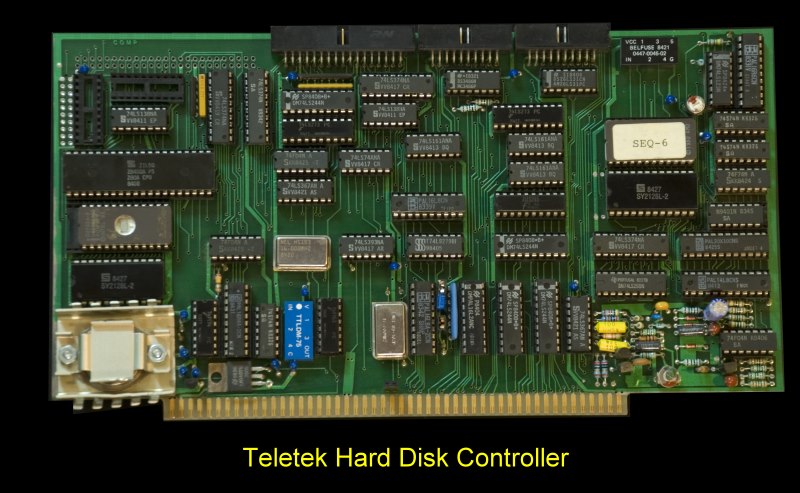

Teletek HDC

The board had an onboard Z80 CPU to handle the I/O. The board interfaced to 5" hard drive but could (because of the Z80) be modified to other types. Control communications with the host processor was via a 2K FIFO buffer.  Two 28-pins sockets allowed the use of up to 16K of onboard EPROM and 8K of RAM.  The board conformed to the IEEE-696 standard.

I have not located a manual for this board yet.  If you have one to shard please let me know.


Other Teletek  S-100 Boards
Systemaster    Systemaster-II    SBC-I    SBC 86/87    HDC    FDC-II     FDC    64KRAM
