Wameco - Z80 Board
This was a rather late arrival amongst S-100 Z80 boards. The board was fairly straightfoward with no "extras".

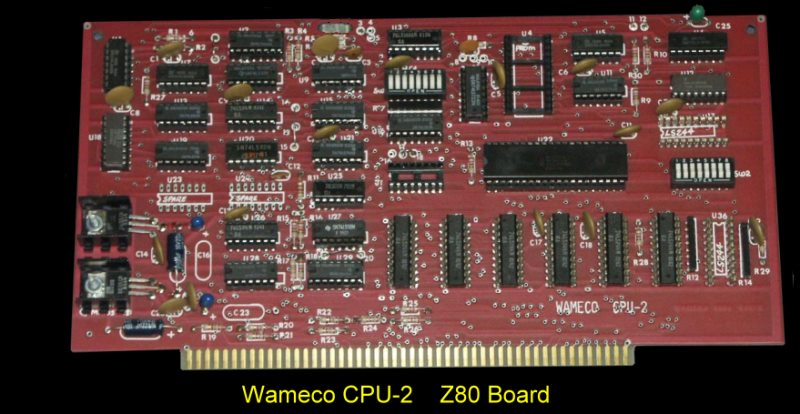

Z80 CPU



The board came out in 1981.  It ran at 2 or 4 MHz.  The only unusual feature was the Power on Jump could be to any 256 byte boundry. The circuitry was well laid out with careful attention to detail to get the S-100 bus signals right.  Noise filtering caps were used in places.

The (very short) manual for this board may be obtained here
.
