SD SYSTEMS
- Versafloppy   I & II
The Western Digital 1771 LSI floppy disk controller chip revolutionized access to floppy disks. It handled much of the disk IO hardware. SD Systems were one of the first companies to present the chip on an S-100 board. Their "Versafloppy" was very reasonably priced and was the first S-100 board to allow access to 5" and 8" drives from the same card. They supplied source code for a simple diagnostic program and also supplied SDOS (their version of CP/M) with the card.

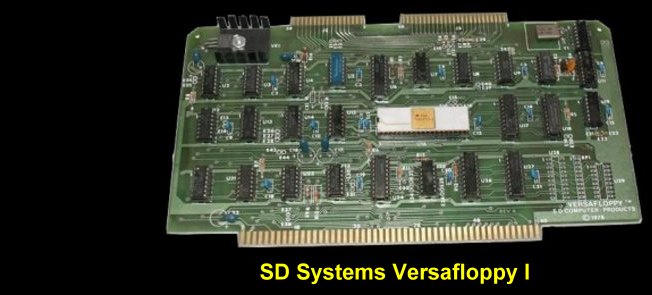

Versafloppy I

The card first appeared around 1978 . It represented a major improvement over the discreet 7400 IC type chips then used on S-100 boards. The 1791 was a major factor in causing the drift away from the hard sector based Northstar disc controller that up until then dominate the 5" floppy drive systems. It was easier to program and lent itself nicely to writing a 128 byte soft sector BIOS to work with CP/M.  Shown above is the first version of the Versafloppy card which became known as the Versafloppy-I. Most cards were purchased as kits and were supplied with SDOS which was SD-Systems CPM configured to work with their Z80 CPU card and monitor.

SD-Systems supplied a complete BIOS source code and small diagnostic program with source code that allowed you to configure SDOS (CPM) for your own system. One reason the Versafloppy caught on so quickly was that it offered a relatively simple way for cassette based software users to tackle the "chicken or egg" problem of being able to write a disk operation system BIOS before actually having a disk operating system running to edit, assemble and store the files. At that time IMSAI or Altair assumed you were talking to their hardware for their controller board. With the SD Systems diagnostic Versafloppy program they supplied an option to format, read and write disk sectors on any S-100 computer. You could load their SDOS system into RAM, patch in links to your consol IO and get a basic system going quickly. To this day, I still remember the feeling of great accomplishment I felt the first time I saw my disk directory appear on my CRT with this board. It made the hours of hardware building and debugging all worthwhile.

The Versafloppy I manual can be seen here Versafloppy I.pdf.

A major limitation of these systems, particularly the 5" drives, was the total storage capacity of the drives was quite small. With the advent of the Western Digital "double density" 1791 disk controller almost everybody moved to double  density drives. SD Systems quickly came out with their Versafloppy II FDC S-100 board. The same BIOS and diagnostic software was supplied allowing for an easy upgrade in disk storage capacity.  SD Systems continuously tweaked the BIOS with upgraded versions allowing multiple disk formats for single and double sided drives.

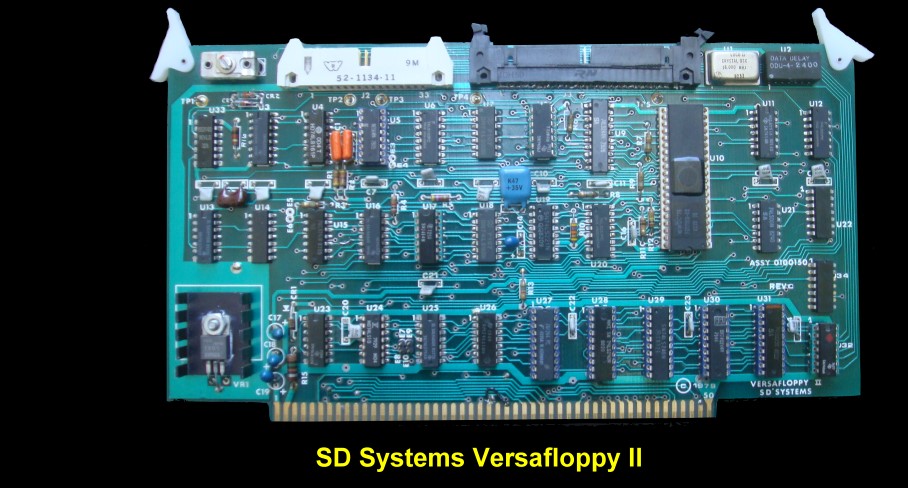

Versafloppy II Rev C


There are actually at least 2 versions of this disk controller card out there.  SD-Systems was one of the first companies to put out a S-100 disk controller card that utilized the then new Western Digital 1791 LSI disk controller chip.  It represented a major improvement over the discreet 7400 IC type chips then used on such boards.   The 1791 was a major factor in causing the drift away from the hard sector based Northstar disc controller that up until then dominate the 5" floppy drives that started to appear at that time. It was easier to program and lent itself nicely to writing a 128 byte soft sector BIOS to work with CP/M.  The figure above is a picture of such a card. Most cards were purchased as kits and were supplied with SDOS which was SD-Systems CPM configured to work with their Z80 card and monitor.  However SD-Systems supplied a complete BIOS source code and small diagnostic program source code that allowed you to configure SDOS (CPM) for your own system. One reason the Versafloppy caught on so quickly was that it offered a relatively simple way for cassette based software users to tackle the "chicken or egg" problem of being able to write a disk operation system BIOS before actually having a disk operating system running to edit, assemble and store the files. At the time IMSAI or Altair assumed you were talking to their hardware for their controller board. With the SD Systems diagnostic Versafloppy program they supplied an option to format, read and write disk sectors. You could load their SDOS system into RAM, patch in links to your consol IO and get a basic system going quickly. To this day I still remember the feeling of great accomplishment I felt the first time I saw my disk directory appear on my CRT. It made the hours of hardware building and debugging all worthwhile.

The board was designed to work with the Western Digital 1791 or the later 1795 chips. I will discuss the differences below. From a hardware prospective with this board they behave identical.

As I said above there were two major versions of the Versafloppy II. The differences had to do with how the data was obtained from the read write heads of the disk. First take a look ate the Western Digital chip specs here. The 1791/5 chip requires a RAW READ Data (Pin 27) signal which is a 250 ns pulse per flux transition and a Read clock (RCLK) signal to indicate flux transition spacing's. The RCLK (Pin 26) signal is provided by a Phase lock loop circuit on the board external to the 1791/5 chip. A Read Gate Signal (RG) is provided as an output (Pin 25) which can be used to inform phase lock loops when to acquire synchronization. When reading from the media in FM (single density). RG is made true when 2 bytes of zeroes are detected. The FD179X must find an address mark within the next 10 bytes; otherwise RG is reset and the search for 2 bytes of zeroes begins all over again. If an address mark is found within 10 bytes, RG remains true as long as the FD179X is deriving any useful information from the data stream. Similarly for MFM (double density), RG is made active when 4 bytes of "00" or "FF" are de¬≠tected. The FD179X must find an address mark within the next 16 bytes, otherwise RG is reset and search resumes.  All this means that the reliability of the board depends on a good circuit to fish out the raw data. On the early versions of the board (up to Rev. C) SD Systems used a NE564 chip for the phase look loop circuit. On later boards (Rev. P) they used a circuit involving a LM301A OpAmp chip. The rest of the boards appear to be identical.

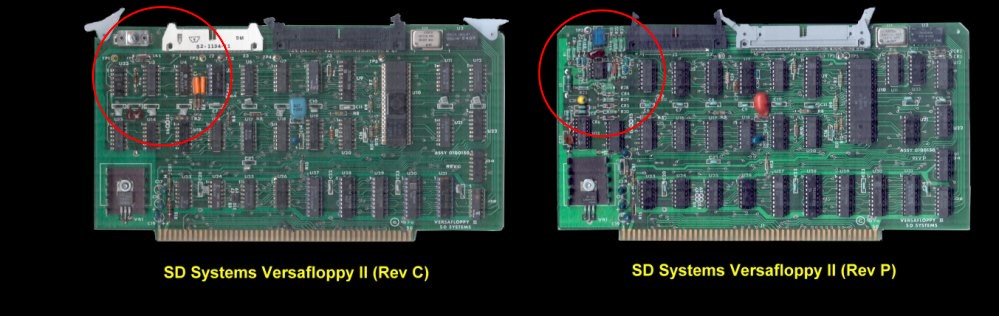

Both Versafloppy II Boards

I have used both boards and found no differences in terms or reliability or software.

One major issue with all Versafloppy boards however is the fact that they were designed before the IEEE-696 specs came out. With older Z80 CPUs they work fine. With IEEE-696 systems there is a slight problem. It has to do with the fact that the board utilizes the old S-100 Clock 1 signal on pin 25 to clock in read and write data strobes to the 1791/5 chip. It counted on the fact that on older systems Clock 1 was an inverse of the main bus clock (Clock 2, pin 24) and that the two did not overlap. With the IEEE-969 specks pin 24 is pSTVAL. It indicates when the status lines are valid but does not guarantee that it will not overlap with the master clock.  The easiest solution is to cut the trace from the bus going to pin 15 of U9 on the board and "piggy back" a 74LS04 inverter IC on to the board. This is somewhat ugly but works fine. A better solution is to use one of the IEEE-696 unused lines  (I use S-100 pin 27) to put on the bus an inverted signal from the master clock (pin 24). You can do this from a prototype board anywhere on the bus or use a spare inverter on some other board. This way you always have the "old" Clock 1 signal for older boards. You need to cut the trace on the board from pin 25 going to pin 15 of U9 and redirect the input of pin 15 of U9  it to the s-100 pin 27 as shown below. The SMB Board JP10 does the invert of the clock and relocates it to S100 pin 27. Allowing those who have both cards a simple way to do this mod.

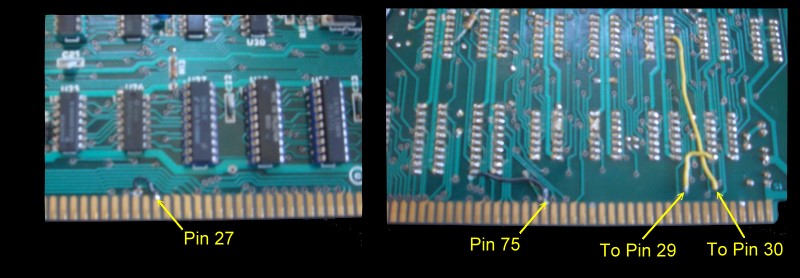

Versafloppy II Patches


Two other less important changes might also be considered. The 1791/5 is initialized using the POC (S-100 pin 99) signal. In theory this should be fine because if the chip "hangs" it should be cleared by sending it a software RESET command (0D0H). However I found at times the board hung when I was experimenting with device drivers etc. requiring a power down and power up to get a POC signal. A better solution is to use the S-100 Reset signal (S-100 pin 75). Again a simple trace cut and redirection of the input pin 11 of U27 does the trick. See the above picture.

It does seem that towards the end SD Systems started to adders this non IEEE-696 compliance problem. I have come across a schematic from them of their Versafloppy II board as discussed above with the op-amp circuit as well as a second schematic labeled "Versafloppy II-696". See the pdf files below. It not clear to me if the IEEE-696 board was ever produced.

Finally for people that wish to move to 16 bit systems and emulate the IBM-PC in their system there is a problem with the hard wired base port SD Systems use with this board. The base port (from which all IO address to the 1791/5 go) is 60H. Unfortunately the IBM-PC utilizes ports 60H -6FH for the 8042 keyboard controller in the IBM-AT (or an 8255 in a PC). I use a Lomas S-100 Video Board which emulates in hardware the IBM-PC video and keyboard hardware and of course requires the 60H block of ports.  Also the MSDOS Support board uses this port.

Fortunately it is easy to switch the base port of the Versafloppy II to the 50H-57H block (unused on an IBM-PC). To do this you must switch the A4 and A5 address lines coming to the board. On the standard board address line A4  (S-100 pin 30), goes to pin 8 of U23 and address line A5 (S-100 pin 29), goes to pin 4 of U16. cut the traces going to these chips and switch over the signals. Two wires as shown above does the trick.

Finally please keep in mind the VersaFloppy mods require changes to Master.Z80 if the ports have not been relocated as indicated above.



The Versafloppy II manual can be seen here Versafloppy II.pdf
The Versafloppy II Schematic (for Rev C boards) can be see here

The Versafloppy II Schematic for later boards can be seen here.
The Versafloppy II - 697 Schematic can be seen here
See here for the Western Digital 1791/5 Data sheets.



Versafloppy II Programming Considerations

SD Systems supplied a simple diagnostic program to setup and test their original Versafloppy.  They even went as far as supplying a CPM "look -a-like" called SDOS that would run directly on their SBC Z80 system.  At the time most users were experiencing the chicken and egg problem in that the software they needed to run CPM was supplied on a CPM disk but they needed that software configured for their hardware setup. Things like Console I/O etc.  Fortunately the SD Systems diagnostic program which you could type in by hand assemble and save via a Tarbell tape etc. allowed you to load any number of sectors from a disk into memory. Since SD Systems supplied the source for their BIOS you could easily patch in jumps for your hardware and bootstrap up a working CP/M operating system. It was crude but it was a one time only event. From then on all software was saved/read/exchanged of floppy disks.  Other manufactures tended to have BIOS and hardware hooks that were more difficult to figure out or were undocumented. The Versafloppy caught on quickly.

The early drives were single density -- indeed single sided drive systems. The almost universal format was the IBM 3740 8"  128 bytes/sector single sided disk format. While quite reliable and fast when compared to cassette tapes such disks have very limited data storage capacity. Typically about 270K.

Western Digital soon brought out a "double density" chip which they called the 1791. Instead of FM signal encoding the chip utilized a MFM encoding format thereby almost doubling the data density on a disk. The gold standard again was an IBM format. One called the IBM System 34 format. It utilized 256 byte sectors and allowed recording on both sides of the disk.  The 1791 was in fact a bit of a rush job. It really did not take care of double sided disk recording. It was up to outside hardware to switch the recording heads of the drives. They quickly corrected this by bringing out a second double density chip called the 1795 which had a dedicated pin (pin 25) for disk side select.

Fortunately for us Versafloppy users SD Systems did drive selection external  to the Western Digital chips with 7400 chips on the board.  The Versafloppy board hardware therefore will work perfectly well with either a 1791 or a 1795 chip.

All this would be a mute point if it were not for the fact that the sector read and write commands to a 1791 and 1795 chip are different.  In order to understand this point it might be useful to discuss how the 1791/1795 floppy disc controller is programmed.

1991/1795 Commands
The 1791/1795 chip contains five 8 bit registers which completely control the chips functions. They are:-

Data Register.         This is the register to and from sector byte by byte data is obtained.

Track Register.
The require disk track is placed in this register. Upon a track seek the new track can be read from here

Sector Register.
The require sector to be read/written to  is placed in this register.

Command Register
This is the most important register it determines what next the chip will do.

Status Register
This register contains various flag bits to describe command success or errors.


Tracks on a disk are laid down in the format:-

Track header...gap...(Track/Sector ID..gap..Data..gap) x N times, ...End of Track

The Track/Sector ID consists of 6 bytes:-

Track#,  Side (0 or 1), Sector#, Sector Size flag (,1,2,3 or 4) , and a 2 byte CRC check.

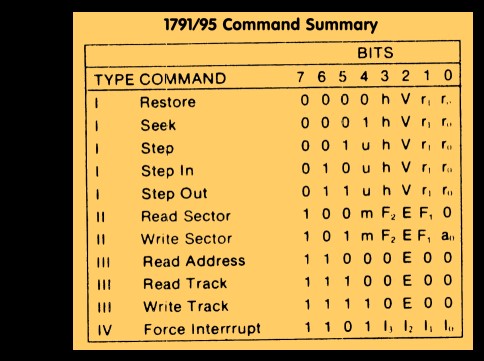

The command register accepts 11 different commands with very precise bit patterns.  They are summarized in this table.

1991/95 Commands

First you will notice that the commands are grouped into 4 groups.
The
Type I commands control the head movement. Bits 0 and 1 determine how fast the head will move from track to track. For most modern drives the maximum speed so these bits are 0,0.  The V bit determines if the chip will verify if it is on the correct track after the head to track movement is complete. Normally a 1 but for disk formatting it is set to 0. The h bit determines if the head is to be lowered on to the disk before or after the command function is complete.

The
Type II commands are clearly the most important (but the most complex).  Bit 0 of a Write sector 'a0' has to do with disk formatting and need not concern us here.

F1 is another story. On a 1791 chip this bit simply determines if the chip is to check if the active head is reading from the requested side of the disk. If 0 the 1791 chip skips this side check. If 1 it checks that the active head is really on the requested side. The side of the disk is contained in the Track/Sector ID field. The second byte of this field is 0 for side A (or a single sided disk). It is 1 for side B.

For the 1795 chip this bit actually outputs on pin 25 a side select level. 0 for side A and a 1 for side B. As said above the Versafloppy does not use this pin.

The E bit determines if there is to be a slight time delay (15 ms) in setting the chip's busy flag after lowering the head.

F2 on a 1791 chip is relevant if F1 was set to 1 (enable side compare).  If it is 0 the sector side field must also be 0 (Side A). If it is 1 then the sector side field must also be 1 (Side B).

F2 does something quite different on a 1795 chip. It governs the meaning of the sector length field in the above Track/Sector ID field. For a 128 byte sector on an IBM disk for example the sector length flag is 0, a 256 byte sector it is 1, a 512 byte sector (MS-DOS) it is 2 and a 1K byte sector it is a 3.  This is  how the old 1771 and 1791 chip interoperates the meaning of the byte in the field.  IF the F2 bit is a 1 the 1795 chip interoperates things the same way. If however it is a 0 then the meaning of the length fields is switched around. A 0 means a 256 byte sector, a 1 means a 512 byte sector, a 2 means a 1K byte sector and a 3 means a 128 byte sector. The data sheet from Western Digital says its to add on the fly sector size flexibility!

What all this means is that a BIOS sector read/write that works for a 1791 chip will nor work correctly for a 1795 chip and vice versa. The differences are minor but enough to hang to system.  They are easily taken care of by using "ifdef's x1791 else x1795 endif's" in the code. My Versafloppy diagnostic (VF.Z80) program illustrates this.

Finally the m bit allows you to read/write  contiguous sectors on a track. Very fast!

The
Type III command either reads the above track/sector ID field or a whole track. The write track command is primarily for disk formatting.

The
Type IV command, force interrupt command is to pull the chip out of a lockup situation. It's basically a chip reset command.----To understand better how to control the chip take a look here at a diagnostic program in Z80 code for the Versafloppy-II recently I wrote called VF.COM.   Programming this chip was a lot of fun and quite rewarding in allowing me to write a fast and efficient CPM BIOS.

Rememberence: The 1791 chip was designed and laid out by Pat Randleman -- well known in the indusrty. It was the chip that really launched Westren Digital and got them into the Hard Disk drive business.  Sadly Pat passed away in October 25, 2009.

A Note On Old floppy Disks.
During the late 70's and early 80's I accumulated well over 100 8" and 5" floppy disks with data. I stored them in the standard plastic floppy cases of the time and generally stored them in dry cool places. Nothing special, but no extreme exposure to heat etc. To my surprise and delight I was able to read back the data without errors form almost all of them with the above Versafloppy II some 30 years later. In one or two cases "rust" accumulated on the 8" floppy head and had to be cleaned off. Even high density 1K byte sectored double density CP/M 8" disks read fine.  Not wishing to push my luck needless to say all data is now on my Home Server properly backed up.
