Solid State Music - 2K EPROM Board
This was a very simple early 1702 EPROM Board.

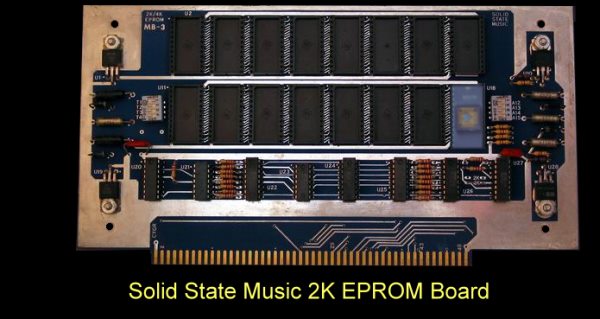

SSM 2K EOROM Board

There is an option for 2K (8) or 4K (16) 1702s, as well as Dip switch selection of addressing and wait cycles.

The manual for this board can be obtained here.
