Matrox --  ALT512 VIDEO BOARD

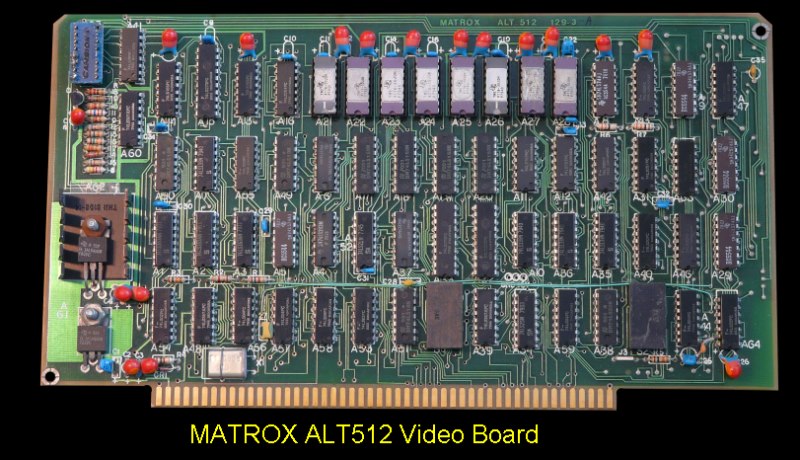

Matrox ALT 512 Video board

This board was the next evolution of the ALT256.  It provided a resolution of 512 X 256 dot raster.  The on-board RAM consisted of eight TMS 4116-30 TI RAM chips.

I cannot locate a manual for this board.  If you have one you would like to share please let me know.



Other MATROX  S-100 Boards
ALT2048     ALT256      ALT512
