Delta Products Z80 CPU Board

This board came out around 1978. It was the only Z80 board Delta made.

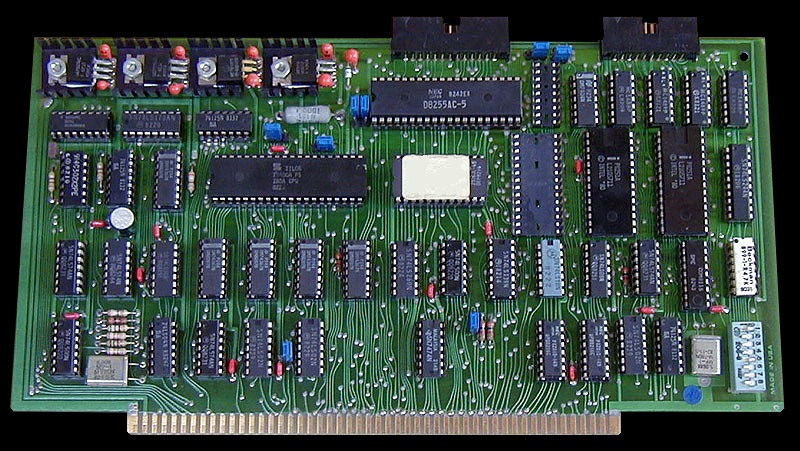

Delta Z80 CPU Board

The board featured two serial ports (8251's) and a 24 bit parallel port (an 8255).  One M1 wait state could be added for slow memory. The board could be jumpered to run at 2 or 4 MHz.  There was room for an onboard EPROM which had to be a 2708 or 2716. It also had to reside at F800H for the onboard power on jump circuitry to work.
The manual and schematic for this board can be obtained here.
