A LCD Display FPGA Code Example.
This circuit example adds a very basic LCD Display to the V2 FPGA Prototype board.  It assumes the user is familiar with the very common "1602 16X2 LCD Display modules". Most commonly found in Arduino board circuits.

The actual hardware on the board consist of nothing more than a 16 X1 pin connection and a variable Pot (10K, to adjust the display intensity).
Here is a schematic and picture.

    LCD Schematic 2
  LCD Picture

This circuit is one of the components of the FPGA Board Shield #1 board.

Interfacing this LCD display to display ASCII characters is simple. We will use an 8 bit data interface and use the S100 bus Port Write strobe for the LCD "E" enable pulse.
There is one slight complication however. This and most other similar LCD displays need to be first configured upon power up.  In other words before you can send any ASCII characters to the display you need to send (in this case), at least 4 bytes to its "
Configuration Register" before sending ASCII characters to its "Data Register".  There are numerous ways the (two lines) of characters can be displayed.  Here is a list of a few:-
     LCD Commands

There are more than this, but this should give you a feeling of how the LCD display is controlled.  There are two "Registers" within the unit. When the
RS pin (pin 4) is low any data sent to the unit is interpreted as an instruction (see above). When RS is high any data sent to the unit is understood to be a display character.  You can go back and forth between these two registers any time.

We will "power up" the LCD unit to display a single line, 16 characters across. The cursor will be on the RHS and as each character in entered the characters will scroll leftwards one character.  At any one time the last 15 characters entered will be displayed.    For this we need to send the following bytes to the unit with
RS low.

38H   ;Set 8 bit mode
0FH   ;Display On, Cursor on
8FH   ;Position cursor on RHS.
07H   ;Shift left after each character addition

Note this is all done within the FPGA code. (Upon power up/running the FPGA code you should see the line of text shown above).

If we were building a classical S100 bus/LCD interface we would program our Z80 etc. CPU to send these commands upon power up.   With our FPGA we can easily incorporate such things into the FPGA so no external initialization code is required.  We will write a small Virlog module (LCD1602.v) which sends these bytes to the LCD display unit upon power up.  We then convert it to a .bdf module and splice it into our LCD_Display.bdf file.  This file is available at the bottom of this page.   The key section is displayed here:-

     FPGA Code

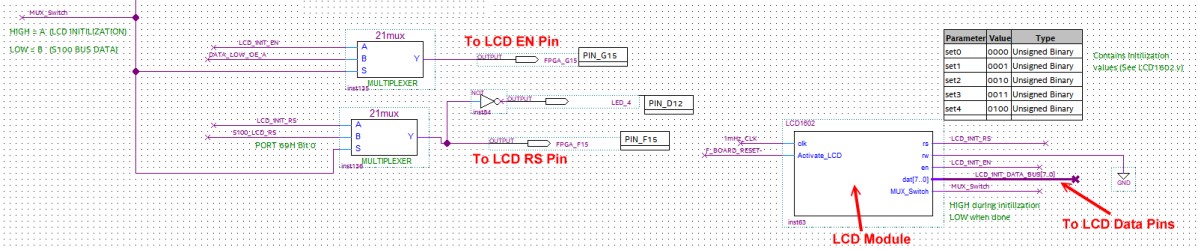

The actual
LCD_Display.bdf layout is fairly straightforward.  If you used our UART.bdf code you will see that that this file starts from that code.   The only complication is that we need to switch the 8 bit data input lines to the LCD display from the LCD1602 module to the 8 bit data line from the S100 bus port 68H after the initialization. We do this with a 2:1 MUX.  When S is high the data to the LCD display data comes from the LCD1602 Module. When S is low the LCD data comes from the S100 bus (Port 68h).   The last line in the LCD1602.v code switches the lines over.

Once Initilized any 8 bits of ASCII data sent to
port 68H by the Z80 appears on the LCD display.   Should you wish to switch over to the LCD module RS register you set bit 0 of  S100 bus port 69H Low.  You can later set it high again and output characters to the LCD display.

The FPGA also has circuits to read the last byte sent to the LCD display by inputting from S100
port 68H, (QI69). When you do this the value will not only appear on your console but also the FPGA board LEDs will also display the value. You can at any time read the status of the LCD RS line by inputting bit 0 of the S100 port 69H.
Here is a simple Z80 master monitor session

QO68,33                  ;<--- Output from port 68H 33H. A "3" should appear on LCD Display RHS.
QI68 00110011
QI69 00000001


This is a very simple example of using our Cyclone IV to for a LCD display.  Please study the files below to understand completely what is going on.

Bugs
There is a minor bug in the program in that if you reinitialize the LCD display (i.e.. upload the code again) without a power down the LCD display gets confused. (More code needs to be added to reset the LCD upon reset).



FPGA_LCD_DISPLAY.ZIP
LCD1602.v
