IMSAI - MPU-B Board
The board came out in 1977. It was very useful and well recieved.

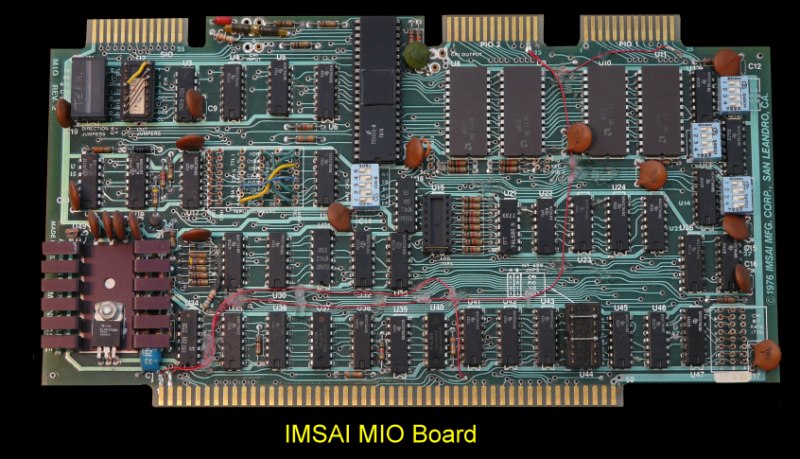

IMSAI MIO Board

The MIO, Multiple Input Output Board, was designed to meet all Input/Output requirements of most 8080 System users by pro­viding the User with the following Input/ Output interfaces:

A Data Storage interface to a standard audio cassette recorder;
Two Parallel Input/Output (PIO) ports;
One  Serial Input/Output port; and
One control port to be used for internal and external control functions.


As an example of its versatility, a single MIO Board could control a TV Typewriter, a Line Printer, a Teletype, and a cassette recorder
The manual for this board can be obtained here and here.



Other IMSAI S-100 Boards
4KRAM   8080CPU   EPROM-Programmer    MPU-B   PIC-8   PIO   PROM-4   SIO   VIO  MIO

FDC (FIB/FIM)
