Digital Research Computers -- 32K EPROM Board

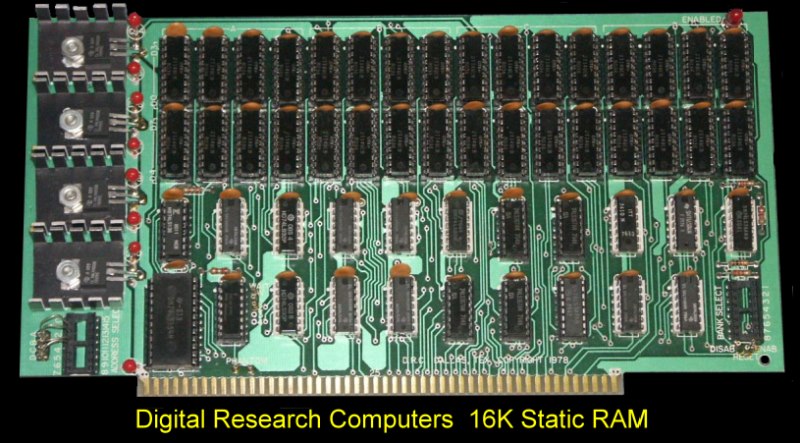

This was a good solid 16K RAM board and at the time it appeared 1978 competively priced.


The board utilized 2114 4K static RAM's. It could be addressed to any 4K block in the 64K address space. It also had on boadr the Cromemco bank select feature as well as a wait state generator for fast CPU's. It had the S-100 Phantom line (pin #67), as well.

The manual for this board can be obtained here.
