Artec Electronics, Inc. - 32K RAM Board

This was a nice clean well laid out S-100 32K Static RAM board.

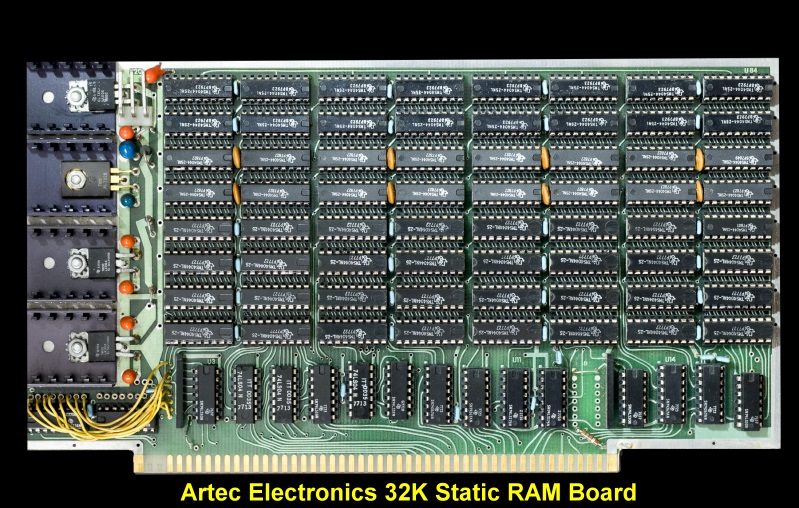

  32 RAM Board

The board came out around 1979.  It utilized TMS 4044 Static RAM chips and would work with a 8080, 2650 or Z80 CPU, the latter up to at least 4MHz.  There was jumper capability to address RAM at any 4k boundary.  There was a bank select feature to allow more than 64K of RAM or to split RAM for multiple programs.  There also was a battery backup option.

The (quite detailed) manual for this board may be obtained here

Other Artec Electronics, Inc.  S-100 Boards

History    32K RAM    Prototype Board
