9 Slot S-100 Bus Motherboard

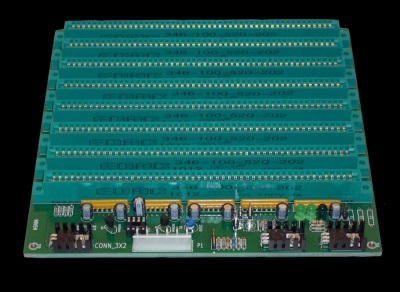

This S-100 backplane is an 9 slot active
terminated motherboard for building and/or repairing small S-100 systems. It is
primarily intended for bench-top work to repair and/or build boards without
risking valuable legacy S-100 chassis.
The builder supplies their own power supplies, connectors, and other
components.

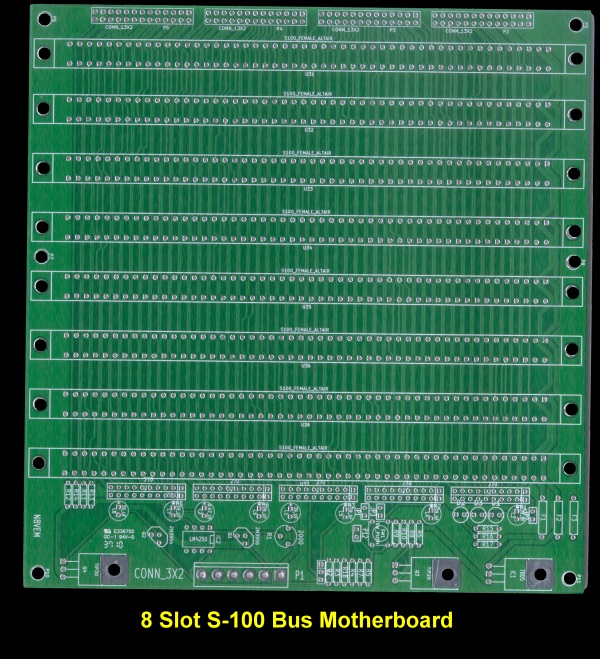

This board is a copy of an 8 slot board (shown below) done by Andrew Lynch a
number of years ago but with added features.
Added features:
• 9 SLOT (One more slot added)
• Active Termination (copied from v 03)
• 1st SLOT is spaced 1” from other slots to accommodate IMSAI Style chassis.
All other slots are spaced the usual 0.75”
• Mounting holes for ALTAIR and IMSAI chassis. Hole size 0.138” (6-32
screws).
• Two power connectors with different pin outs.
o P1 with 0.2” (5.08mm) spacing. Hole Size 0.060”
o P2 with 0.156” spacing. Hole Size 0.065”
• Expansion Connectors with multiple function
o Expansion IN/OUT
o Test point
o Active Termination
• Jumpers to ground some S-100 pins as needed by IEEE-696.
o Pins 20, 53 & 70. (Pin 53 on ALTAIR and IMSAI computers is needed
for Front Panel operations and should not be grounded
when using these front panels).
• Thick board, approximately 0.100”.
• S-100 connectors require 0.25” row spacing. Hole sized 0.040”.
• Fused power.
A new V4 version of this motherboard has been fabricated. Please contact Josh,
AKA "Crusty" here
to see if one is available.
Also read here
for a description of a similar 12 slot motherboard and
here for an advanced
S100 bus system by Jerffrey Wilson.
