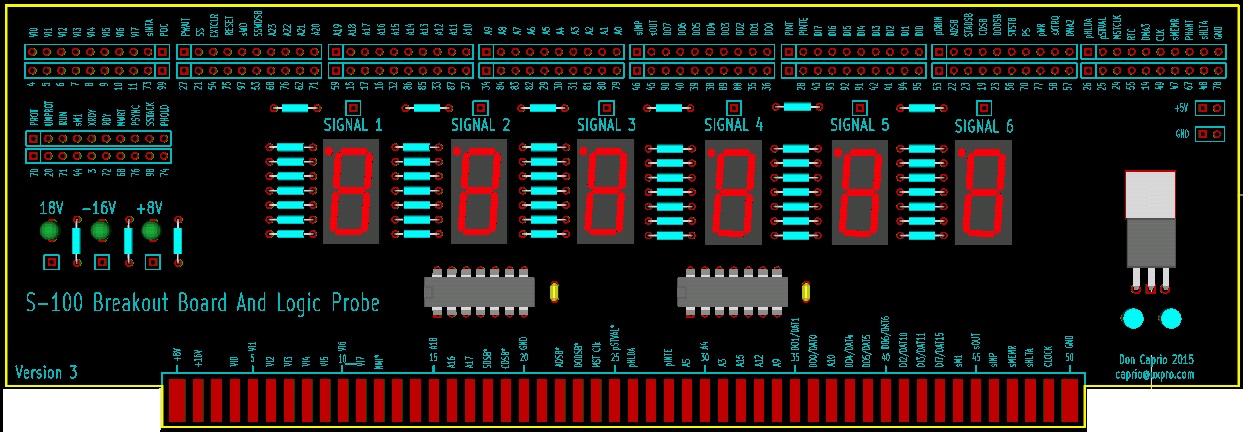

What do you think about this new version of the breakout board?
I doubled the number of test pads and added six built in logic probes.
You can monitor up to six signals with the 7 segment LED showing
H (High) or L (Low). To monitor a signal you place a jumper from the
signal post to a bus pin.
I tried to use a simple logic probe design to conserve on board space.
Design uses 7404. I'm open for suggestions to improve probe circuit.
Thank you.
-- Don Caprio ilv...@gmail.com
