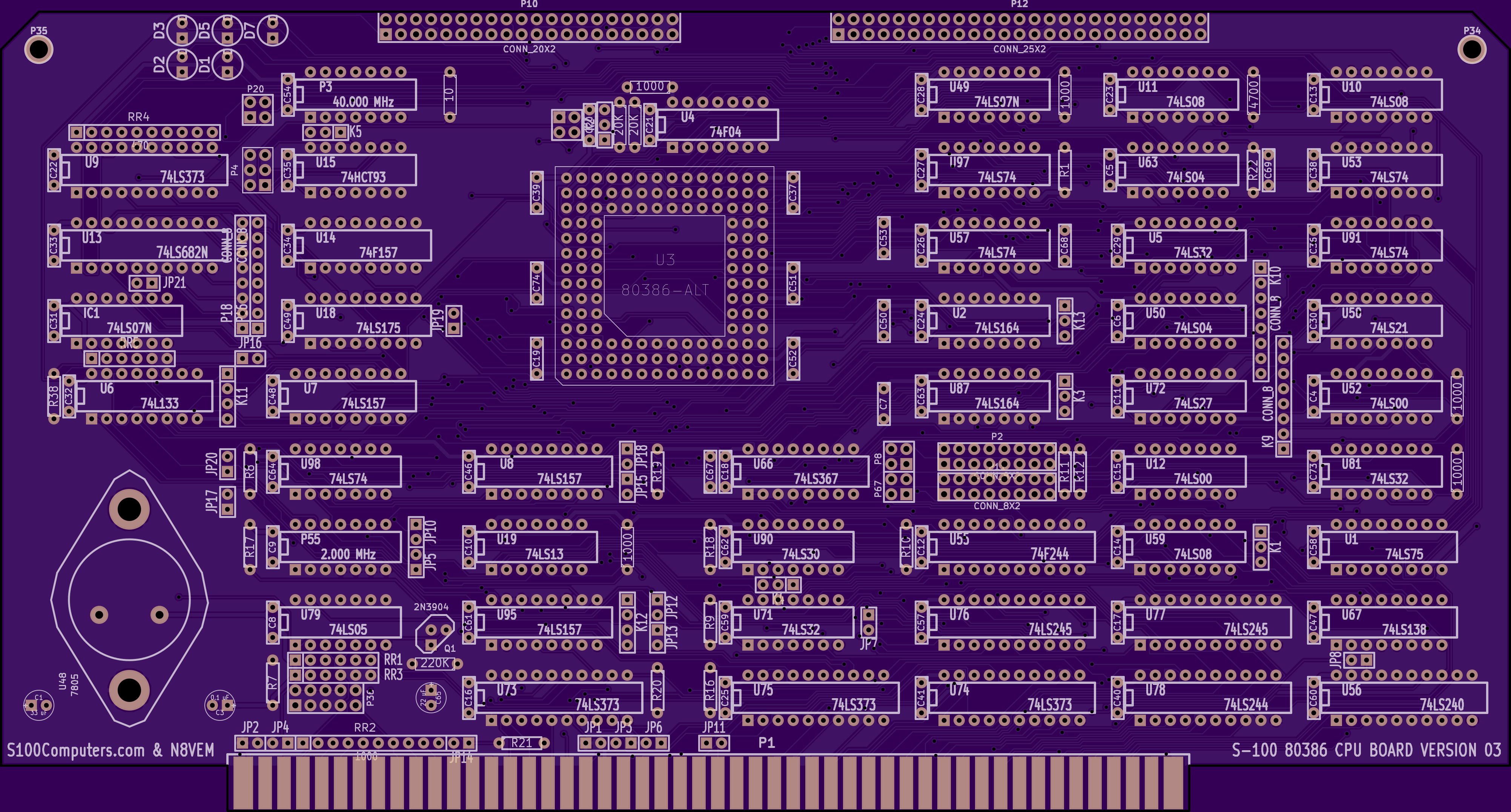

Alex the files are generated with kiCAD. I’m attaching it here.
The files were sent to http://www.pcbcart.com/ not all the files are actually used by them they were just pumped out by KiCad
John
From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com] On Behalf Of J. Alexander Jacocks
Sent: Tuesday, August 26, 2014 3:01 PM
To: n8vem...@googlegroups.com
Subject: Re: [N8VEM-S100:5047] PCB Via Counts
John,
Sorry I couldn't respond sooner. I've been caught up in a machining project for the past few days.
The PCB archive you posted has a naming scheme that I'm not familiar with. Can you send me a link that explains what the various files are? Some of them, I can guess, but I've really only worked with OSHpark, and their scheme is:
boardname.GTL Top Layer
boardname.GBL Bottom Layer
boardname.GTS Top Soldermask
boardname.GBS Bottom Soldermask
boardname.GTO Top Silkscreen
boardname.GBO Bottom Silkscreen
boardname.GKO Board Outline
boardname.G2L only if you're uploading a four layer board
boardname.G3L only if you're uploading a four layer board
boardname.XLN Drills
Thanks!
- Alex
On Fri, Aug 22, 2014 at 3:10 PM, John Monahan <mon...@vitasoft.org> wrote:
Here is the 80386 .zip file I sent to PCBCart Alex
John
From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com] On Behalf Of J. Alexander Jacocks
Sent: Friday, August 22, 2014 11:50 AM
To: n8vem...@googlegroups.com
Subject: Re: [N8VEM-S100:5001] PCB Via Counts
John,
I believe that they will do gold fingers, and I don't think there is an additional charge for them. However, since I haven't done it, I don't know, for sure.
If you want to send me an example set of Gerbers and drills, I'll request a quote, and find out.
- Alex
On Fri, Aug 22, 2014 at 2:35 PM, John Monahan <mon...@vitasoft.org> wrote:
Do they do gold fingers?
If so what cost per boardJohn
-----Original Message-----
From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com] On
Behalf Of Don CaprioSent: Friday, August 22, 2014 11:21 AM
To: n8vem...@googlegroups.com
Subject: Re: [N8VEM-S100:4997] PCB Via Counts
I've been using a manufacturer here in the USA (IL).
They have waived setup fee for me a couple times and work hard at being
competitive.
75 boards with gold fingers, 10 days @ about $12 a board.
Check them out. They are good folks.
http://www.pcbnet.com
On 08/22/14 11:00 AM, John Monahan wrote:
> They seem to classify less than 500 or greater. It does not seem to make
a
> big difference in price as far as I can tell (at least with PCBCart).
The
> number 1 factor, is the number of boards. There is a "setup fee" fee
> of
> $70-$80 for each new board. After that it's a board cost. Just place
> the
> (large) order for the 80386 + RAM boards, total ~100 boards, works
> out to be ~$13/board.
>
> John
>
>
>
> -----Original Message-----
> From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com]
> On Behalf Of Don Caprio
> Sent: Friday, August 22, 2014 9:50 AM
> To: n8vem...@googlegroups.com
> Subject: [N8VEM-S100:4992] PCB Via Counts
>
>
> Are there any guidelines for acceptable number of via's on an S-100
> PCB? How do quantity factor into manufacturing?
> I'm guessing fewer number means less cost and possibly shorter overall
> trace lengths.
>
> Autorouter starts to slow down and eliminate less and less.
> Doesn't seem like it's worth it to continue to run autorouter to
> reduce via with results like 1 or 2 a day.
>
> --
> Don Caprio
