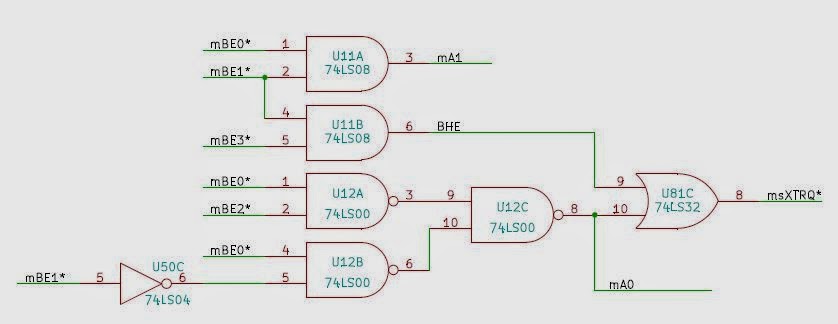

You were right Rob, the path was wrong. I have F:\DOSBOX as the root directory but use Mount F F:\DOSBOX So I should have had PATH F:\PALASM\EXE SET PALASM=F:\PALASM\ Using that, the Minimize Boolean option seems to work. And the F3 now explains errors. Next question, Could you write the equations for mA0 and /msXTRQ for me from the attached figure. I cannot figure out how you get more than one layer down without using brackets in these equations. John -----Original Message----- From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com] On Behalf Of Rob Doyle Sent: Wednesday, April 23, 2014 9:55 PM To: n8vem...@googlegroups.com Subject: Re: [N8VEM-S100:3205] Re: GAL's and PALASM I think we have the same directory layout but I've mounted my "J drive" differently. I have: PALASM.EXE is in J:\PALASM\EXE PDS files are in J:\S100 Environment variables are: PATH=J:\PALASM\EXE PALASM=J:\PALASM\ The trailing slash on PALASM variable is important - but you seem to have that correct. After compiling, there is an note at the bottom of the screen about: <F3>Help-errors When the path is wrong and I press <F3>, I get a notice about which EXE palasm can't find. Rob. On 4/23/2014 6:51 PM, John Monahan wrote: > It's been so long ago since I did that MSDOS path stuff! > > Here is how I actually have my PALASM4 setup It's on drive F: > The actual PALASM.EXE file is in the directory F:\DOSBOX\PALASM > That directory has sub directories > \DAT > \EXAMPLES > \EXE > \DOC > \S100 <- my GAL .PDS files > > These directories were setup that way during the install (except the S100 one). > > The only PATH & SET scripts I have are:- > > PATH F:\DOSBOX\PALASM\EXE;F\;"%PATH;F:\DOSBOX\PALASM4\EXE" > SET PALASM=F:\PALASM\ > > Does seem screwed up Rob, now that I see it. > What do you have? > > John > > > > -----Original Message----- > From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com] > On Behalf Of Rob Doyle > Sent: Wednesday, April 23, 2014 5:32 PM > To: n8vem...@googlegroups.com > Subject: Re: [N8VEM-S100:3194] Re: GAL's and PALASM > > On 4/22/2014 2:52 PM, monahanz wrote: > >> >> However if I set “Y” for “Minimize Boolean” in the Compilation >> Options, the compile does not give an error but no .JED file is >> written. >> > > [snip] > >> Bob, I'm just learning how to use PALASM4. What I'm trying to figure >> out is how to emulate in software the circuit attached here:- > > Funny. I was going to follow up on this. > > But first I wanted to play with some of my 'known good' Heath H89 PAL designs. To my surprise, PALASM4 didn't generate a .JED file... > > Once I set the DOS PATH statement correctly, everything worked. > > The executable sequence should be: > > PARSE > BPP > EXPAND > BPP > MINIMIZE > PALXPT > > With the path is not set correctly, PALXPT does not execute and the JED file is not created. > > Can you verify? > > I'll follow-up on the memory decoder question soon. > > Rob. > -- You received this message because you are subscribed to the Google Groups "N8VEM-S100" group. To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com. For more options, visit https://groups.google.com/d/optout.
Attachment:
GAL Diagram.JPG
Description: JPEG image
