Re: no memory monitor for z80




thank dave dunfield.  it uses sp and ix for subroutine linkage, and will run with zero working ram in the system.   I burn it into a eeprom and stick it on the cpu card, and use that to run bus cycles of various types.  it does require a working/accessible uart, though.

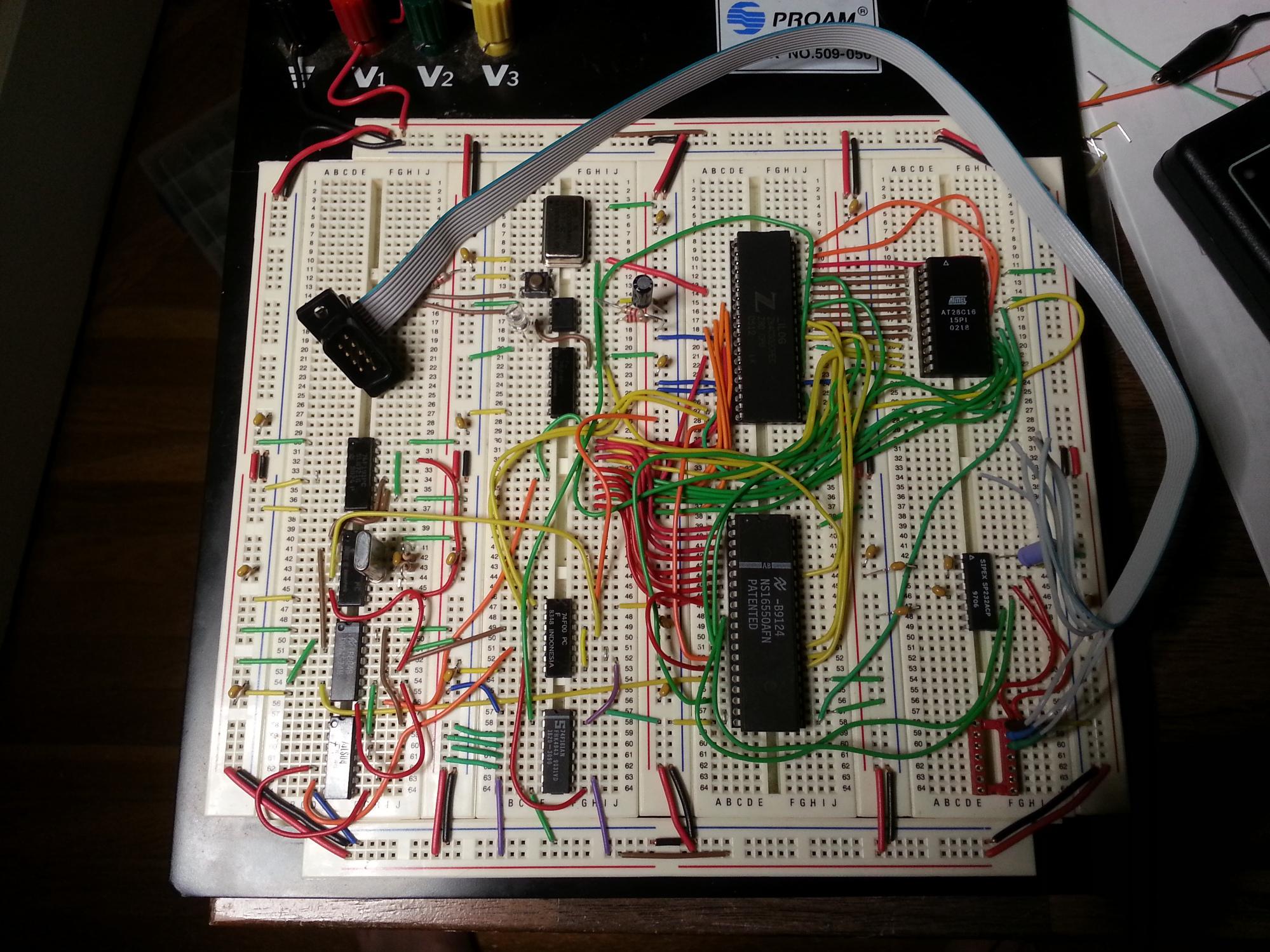

I used it to build this z80 test rig: (2 mhz in 2 hours, 16 at 4 hours, standing start)


On Monday, July 7, 2014 4:53:07 AM UTC-7, Edward Snider wrote:
Interesting.

Thanks Curt.

- Ed

On Sunday, July 6, 2014 9:45:43 PM UTC-5, curt mayer wrote:
I have found this invaluable for doing z80 card bringup.  Dave Dunfield, who wrote the original, gave me permission to distribute.

the serial card setup is for an 8250 at 0x48, which happens to match my morrow wunderbus and my ccs 2710.
it's trivial to modify.

I disassembled dunfield's .hex file I found somewhere or other, and added my own stuff i found useful.

build instructions in the file.  it assembles with sdas and loads with the linker from the sdcc toolset.

--curt



Attachment: 20140613_005731.jpg
Description: JPEG image
