Hi Josh, here is what I wrote up. Any changes/errors let me know.
See bottom of this page.
http://s100computers.com/Cards%20For%20Sale.htm
John
From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com] On Behalf Of Crusty OMO
Sent: Wednesday, June 18, 2014 6:33 PM
To: n8vem...@googlegroups.com
Subject: RE: [N8VEM-S100:4274] Buffered Prototyping Board, Sea-o-PTH
Hi John,
Thank you.
Please find attached a schematic and board layout pdf.
For the short write up, you can say,

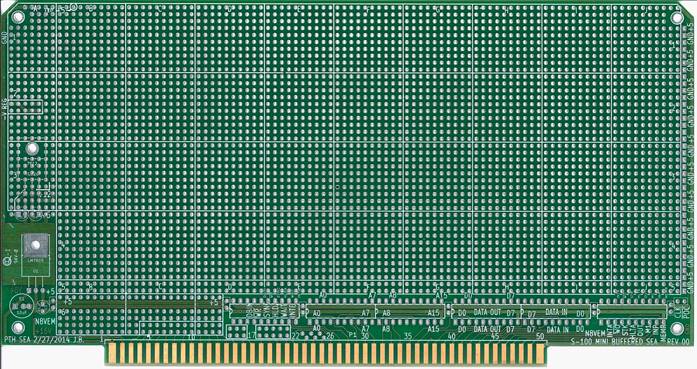

S-100 Mini Buffered Prototyping board.
Features:
4042 Holes
+5V Regulator with 74LS245 buffer chips for Address, Data, Status and Control bus.
S-100 connector with gold fingers
Labeled pins on Copper side (where you need it)
+5V and GND power distribution on right edge of card
Fusible Links on the 3 power rails
Optional Power LED
Optional Positive and/or Negative Voltage regulators
Optional holes for Card handle or Card stand-offs
Regards,
Josh
