RE: [N8VEM-S100:3479] ALTAIR/IMSAI 8080 CPU replacement board



Andrew,

Yes, absolutely.  I agree, they do complement each other very nicely.

When I'm done this prototype, I'll be testing it with the ALTAIR, IMSAI and the FPmini.

Now, at some point, I must limit my hours on this project to make way for VCF MidWest Exhibit preparations.

Cheers,
Josh




From: n8vem...@googlegroups.com
To: n8vem...@googlegroups.com
Subject: RE: [N8VEM-S100:3479] ALTAIR/IMSAI 8080 CPU replacement board
Date: Sat, 3 May 2014 12:47:04 -0400

Hi Josh



Will your 8080 FP board work with the FPmini board project?  It seems like they would be a natural pair.



http://fpmini.pbworks.com/w/page/39529866/FP%20Mini



Sorry if this is a silly question.  I have just forgotten where your project is headed.



Thanks and have a nice day!

Andrew LYnch



From: n8vem...@googlegroups.com [mailto:n8vem...@googlegroups.com] On Behalf Of Crusty OMO
Sent: Saturday, May 3, 2014 10:32 AM
To: n8vem...@googlegroups.com
Subject: RE: [N8VEM-S100:3474] ALTAIR/IMSAI 8080 CPU replacement board



Fabio,

Yes, once I have all the bugs worked out and features working, I intend to re-enter the schematic into KiCad and build a board.  The present features of the board were actually arrived to by a general consensus and discussion from this group.

The features thus far are:
-onboard RAM/ROM with option to map out some of it to S-100 space (in 8K chunks).
-Shadow ROM, that is, the EPROM occupies some space in the memory map until it's disabled, at which point, RAM at the same location will be used.
-Two UARTS, 8250 type
-SD Card interface using SPI
-Limited parallel I/O  (6 outputs, 8 inputs).  I'm using 2 outputs to control shadow ROM and SD Card
-Either run as the 8080A CPU or run as a slave board to an external CPU, thus making it a Memory and I/O card by reversing direction of all the buffer chips.
-Both ALTAIR and IMSAI FP connectors.

I am intending to take this project to the point where it's a board and write some BIOS so CP/M can be booted up from a Disk Image file on the SD Card.  This later part may take a while as I have other commitments to get an exhibit booth ready for VCF MW, this coming September.

Cheers,
Josh


Date: Sat, 3 May 2014 16:11:00 +0200
From: hkzl...@gmail.com
To: n8vem...@googlegroups.com
Subject: Re: [N8VEM-S100:3472] ALTAIR/IMSAI 8080 CPU replacement board

Hmmm, I can't offer advice but I'd like to know if you plan to ever do a production run of this once it works.
Maybe it's a bit early to ask, but I do like the idea (and have a few spare 8080 around :-D

Oh, and that 8080 is lovable BTW!
Fabio

On 03/05/14 16:05, Crusty OMO wrote:

Hi Group,

Well, now that these "Sea of PTH" buffered prototype boards are built, my first project on one of them is the 8080A CPU replacement board I started talking about back in November.

I have the prototype built (for the most part).  I plugged it in, but it's not working... yet.
But at least I'm at the trouble shooting stage.

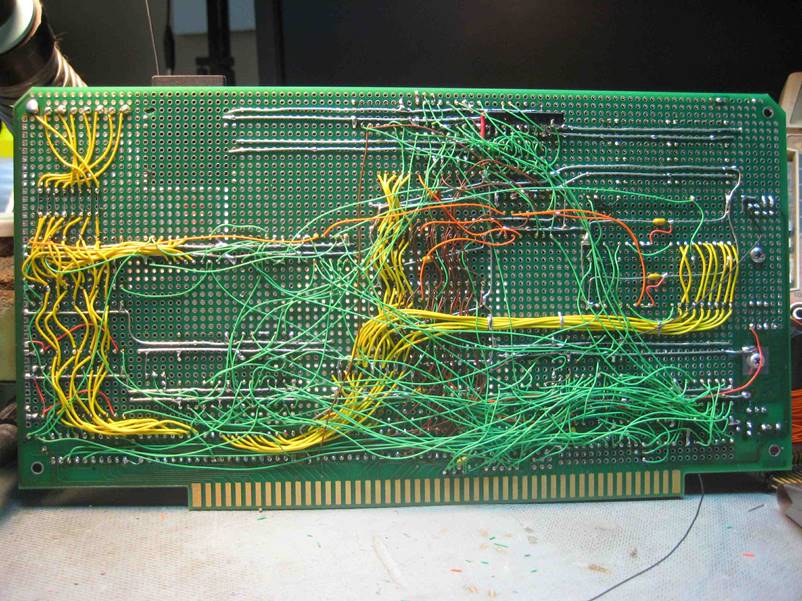

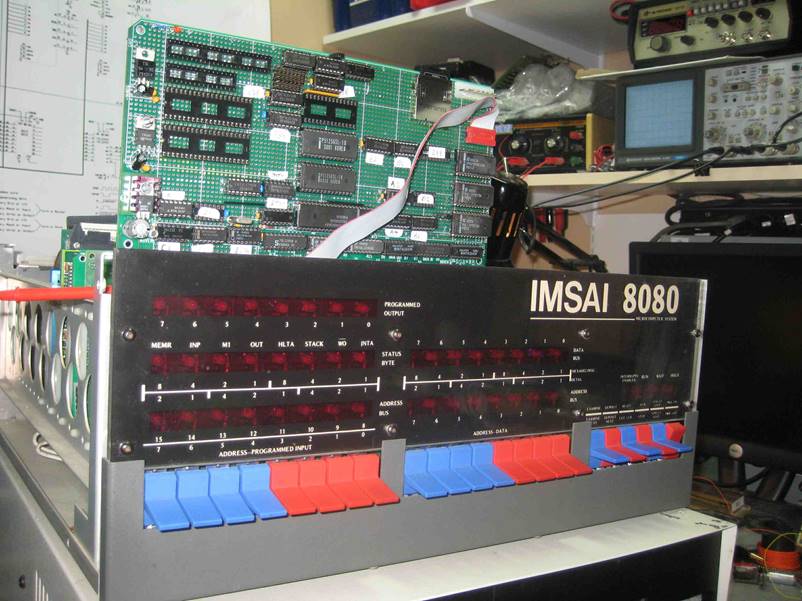

Photo's below.

Regards,
Josh Bensadon











--
