New S-100 Computer - first test photos

I have completed the base, backplane and power supply portions of my new S-100 computer.  This will be used for testing purposes, so was designed to be open and accessible, and I built it on a wooden base.  The backplane is the N8VEM version 2, slightly modified, and the power supply is a MeanWell QP-200F.

The MeanWell ps outputs 5V, so I modify and run all my S-100 boards without the 5V regulator.  Hence, the backplane was modified by not installing the regulator; I just jumpered the input to the output.  I discovered that the orientation of Q1 was incorrect, so that transistor has to be installed backwards from what the silkscreen shows.  And I could not find resistor arrays with leads long enough to protrude through this overly thick PCB enough to solder.  So, I made my own arrays out of discreet resistors and some spare protoboard PCB material from another project.  As for the power connector, I utilized a Phoenix Contact screw-terminal connector.  Finally, since the fuses only protect the LEDs, I eliminated those.

The large unoccupied area of the base board is drilled and ready to mount up to 2 full-sized 8" floppy disk drives.

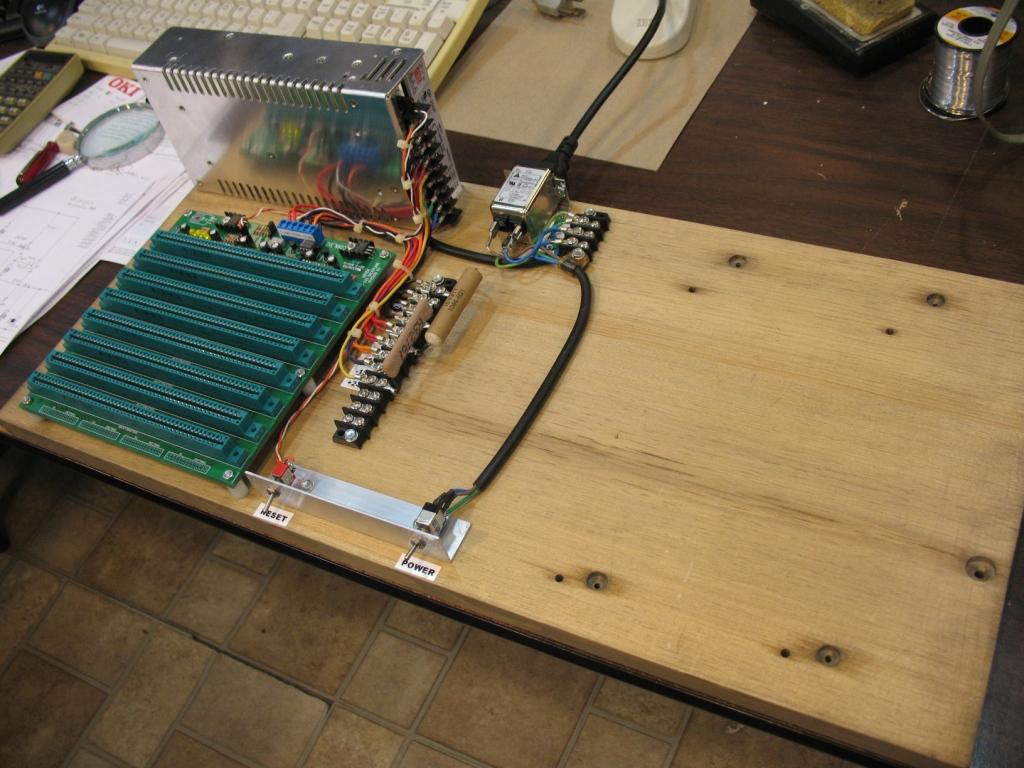

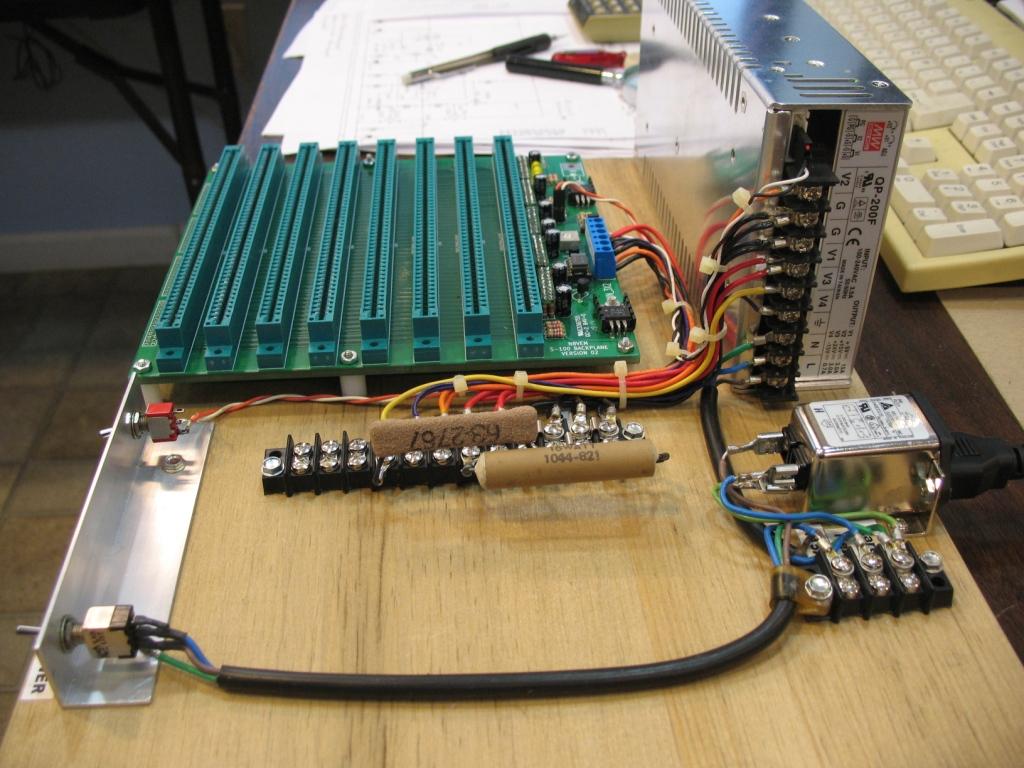

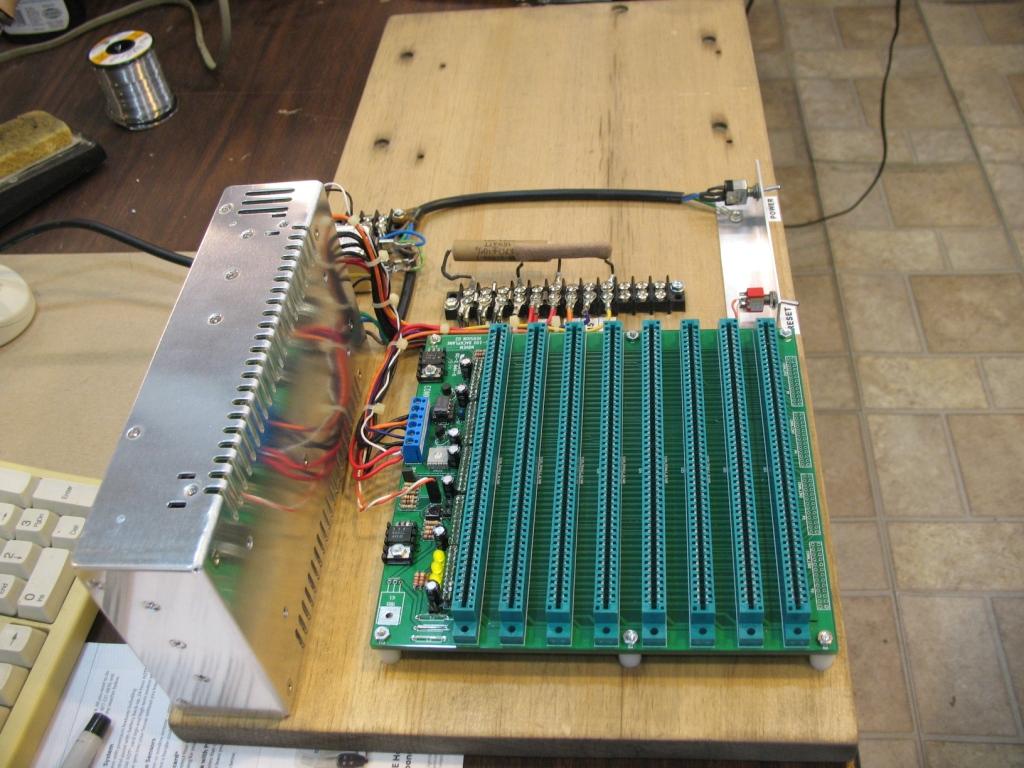

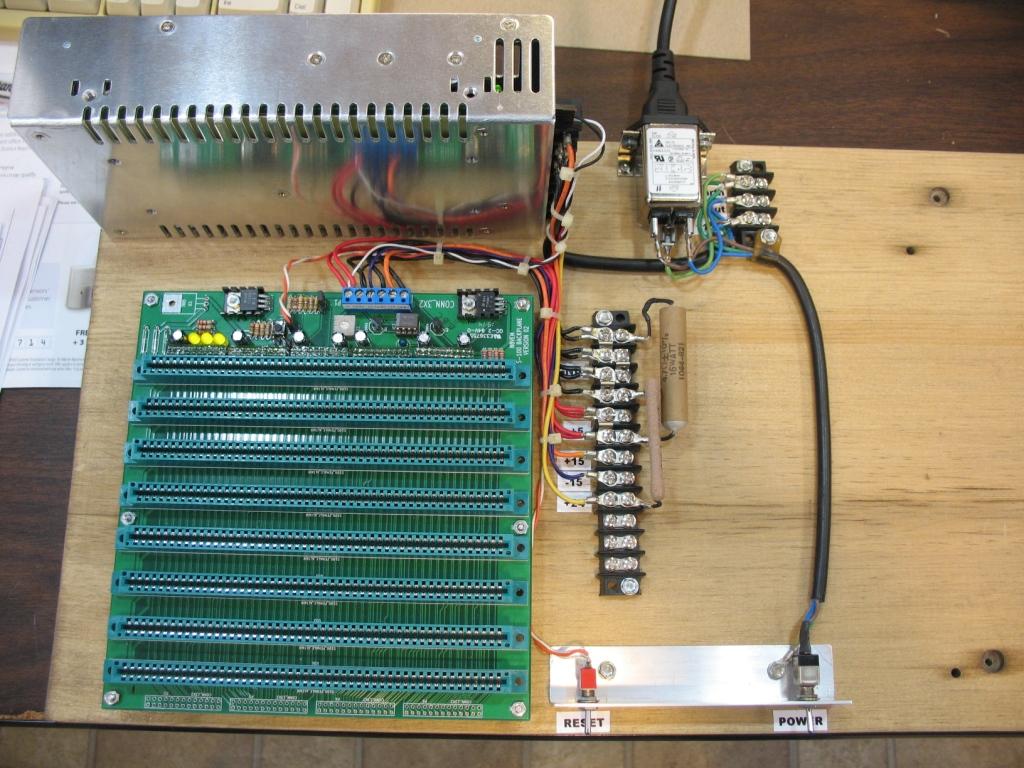

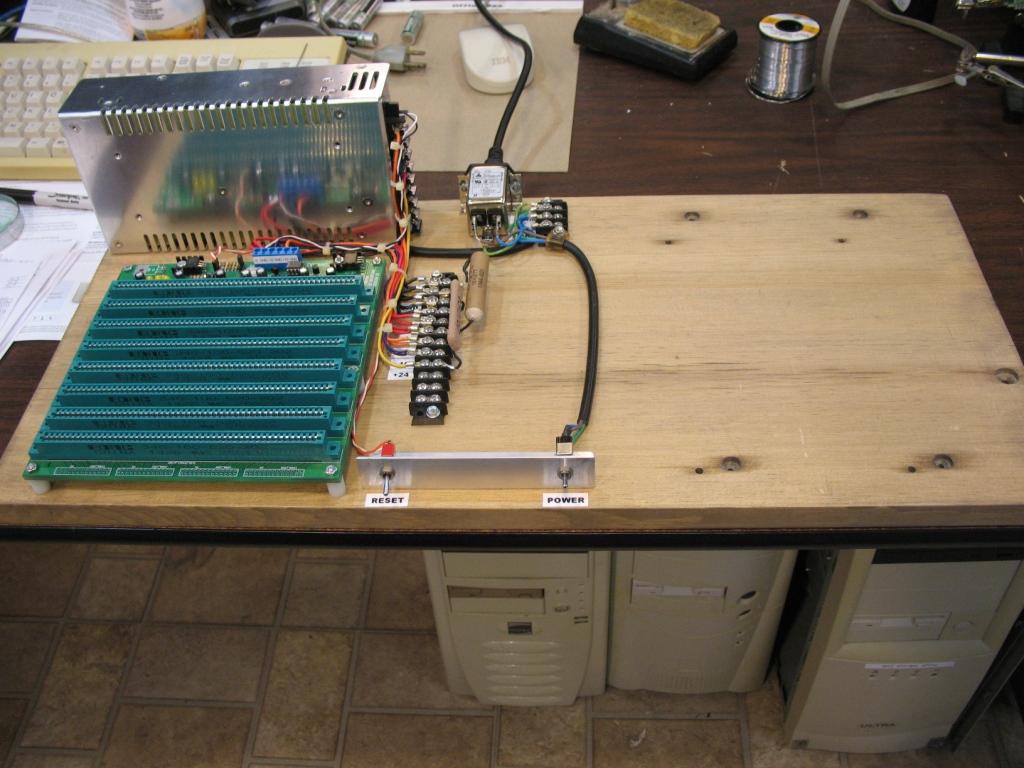

Photos of this new computer are attached (I hope!)

Bob Bell
