Re: [N8VEM-S100:2587] Re: Board Run: Unbuffered Prototyping

Thanks for the updated foils & silkscreen.  What's with the three left-hand uncommitted DIP-14s and the two overlapped decoupling caps (which I guess could be attached to the underside)?  Can you also share the updated schematic?  How did you chose the end-point for the 5v power LED -- it seems to be "at sea" rather than "in harbor"?

On Fri, Feb 28, 2014 at 10:55 PM, Crusty OMO <crus...@hotmail.com> wrote:

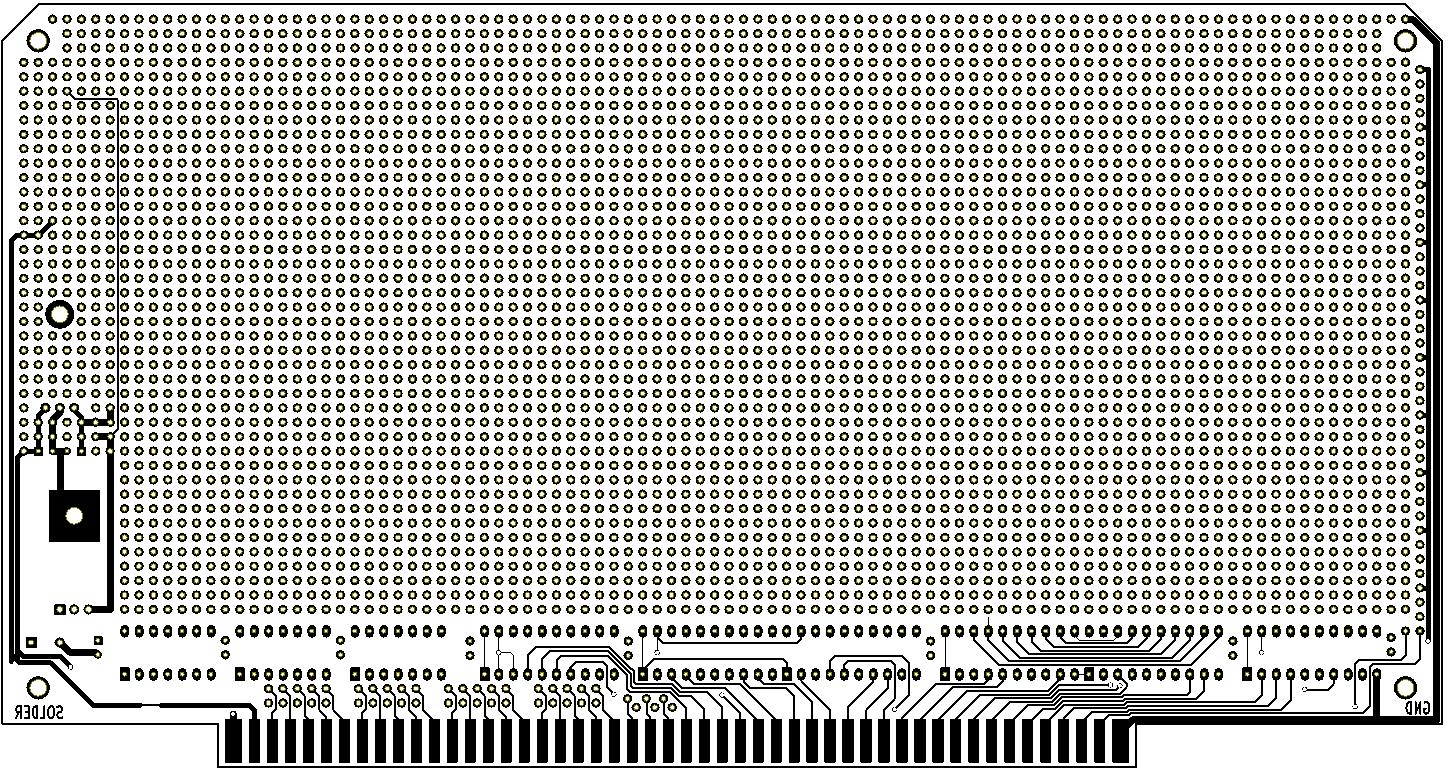

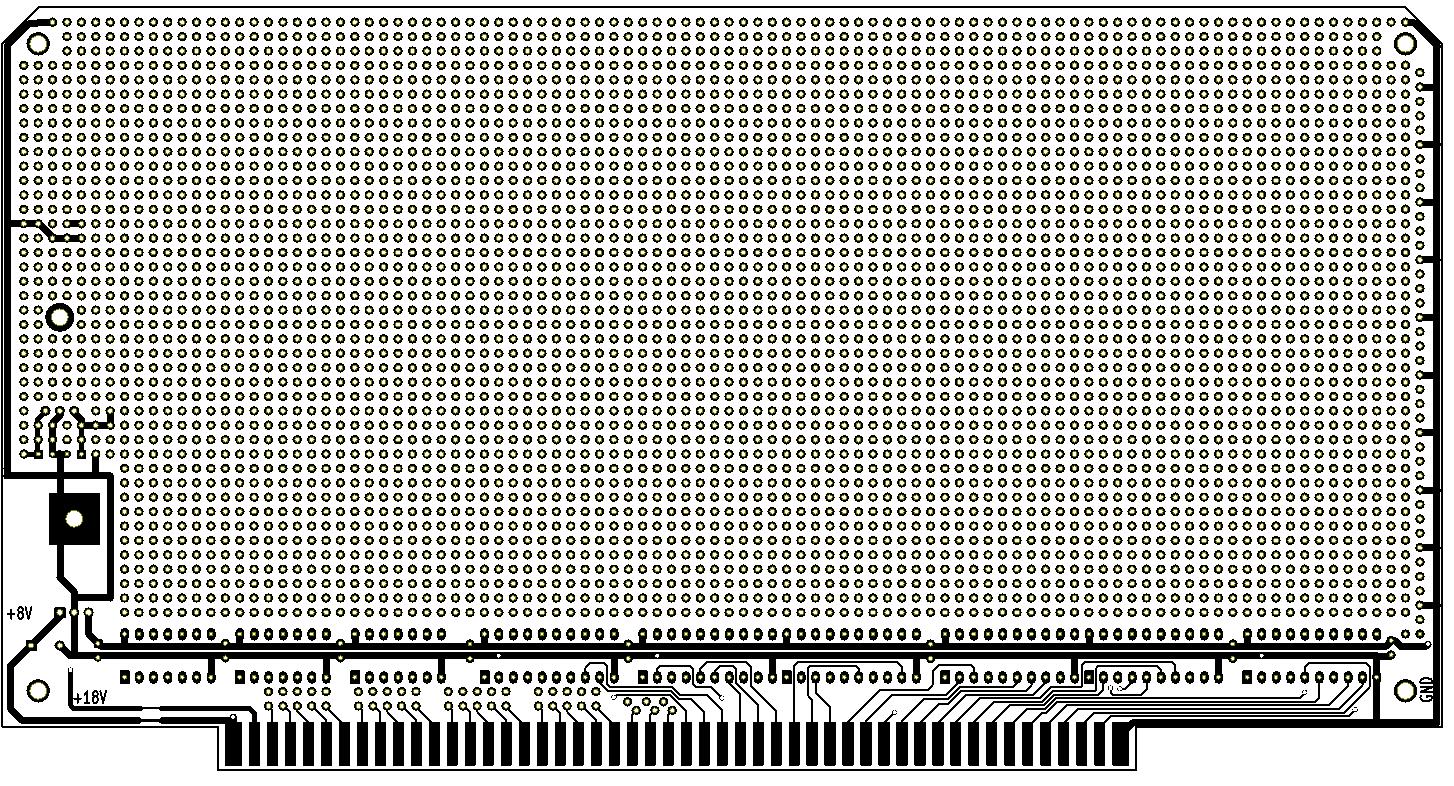

I printed a the foil patterns and got a more accurate view.
The chips on the bottom row are 6 74LS245's, from right to left, they provide
Status, Data In, Data Out, A8-15, A0-7, Control.   3 more 14 pin chips are to the left, with VCC and GND.
Holes are all down 50mil, Regulator has shifted to the right 100mil.

Original Unbuffered board gave 45 rows, this buffered board gives 42 rows.

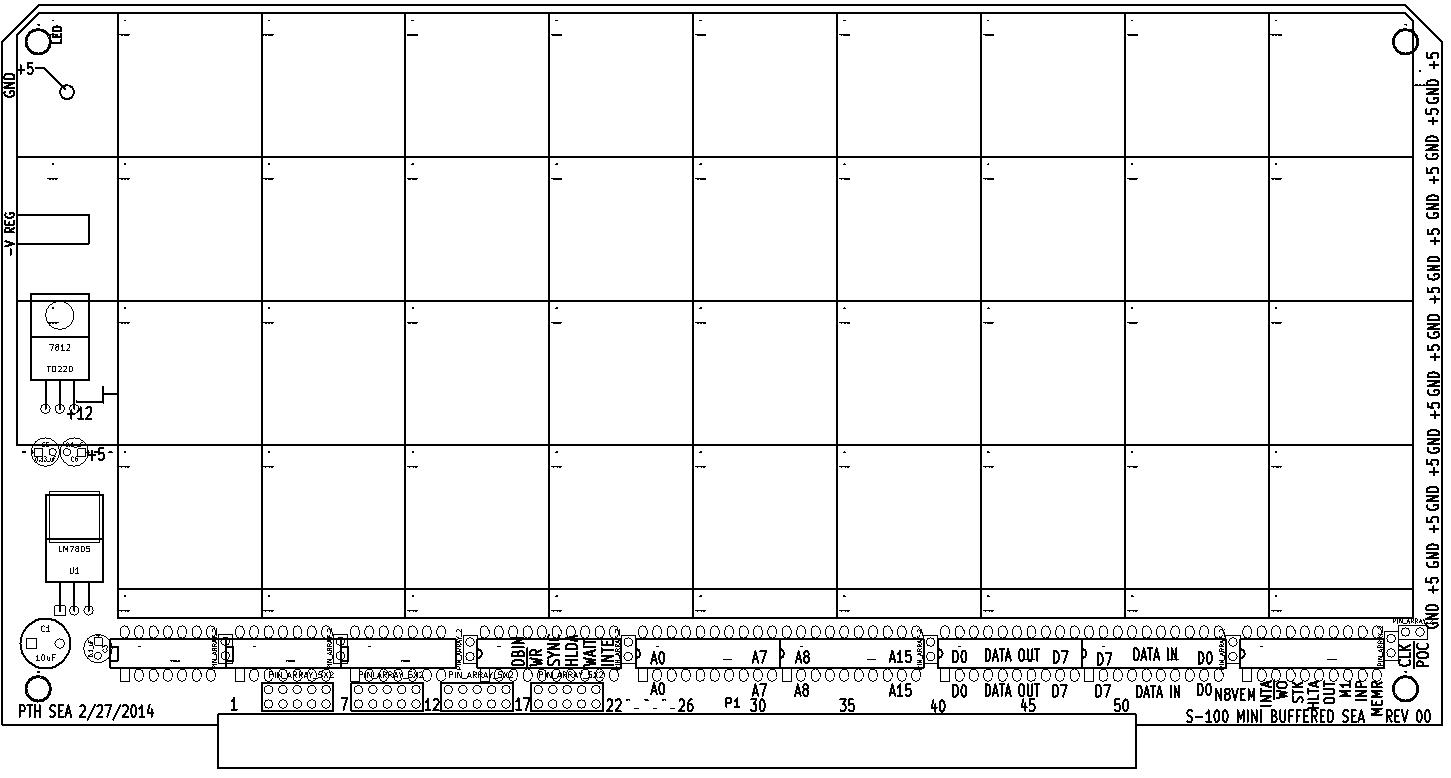

Silk - Grids are 10 by 10 holes.  The 5V for the LED is marked, 5V and GND available from right.
The 7812 and 7912 Regulators are optional, if not installed, other chips can straddle the pads used.
