Jeff,
Jameco used to stock the T handle tool for MTA connectors.
I found it at Mouser.com. I assume this can insert and replace individual
wires.
It is on their web catalog on page 2274, AMP tools and accessories.
“T” Handle Maintenance Tool
PN# 571-598041 E For MTA .156 Series
$22.31
Rick
From: Crusty OMO
Sent: Wednesday, June 17, 2015 5:24 PM
Subject: RE: [N8VEM-S100:7238] Identify Eagle Spirit II molex
connector
Hi Jeff,

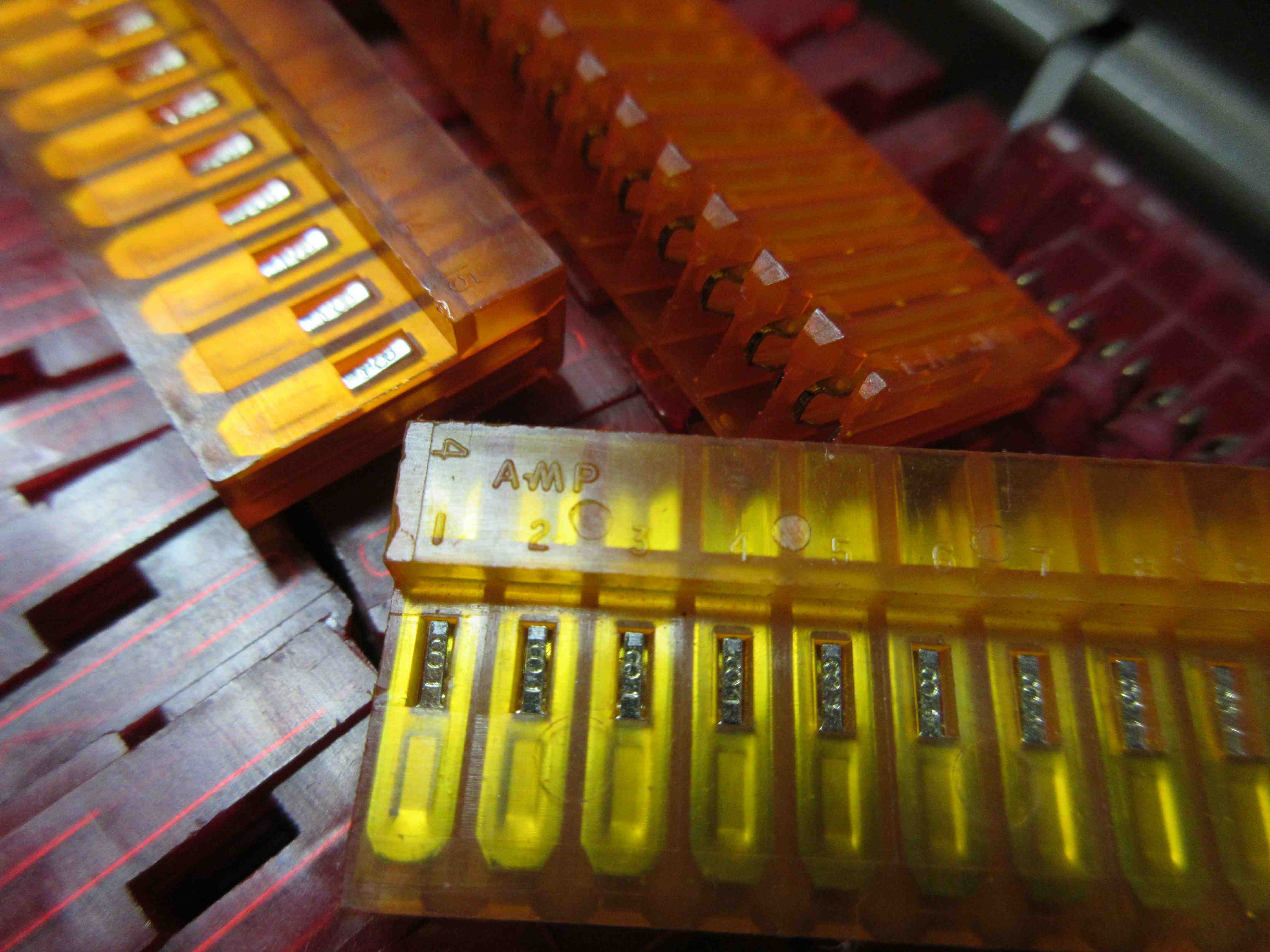

These look like the Molex connectors but they are not. These are AMP connectors (now called TYCO).
They are called MTA connectors (Mass Termination A?). They come in .1" and .156", aka MTA-100 and MTA-156. Here's the Digikey part number: A31300-ND

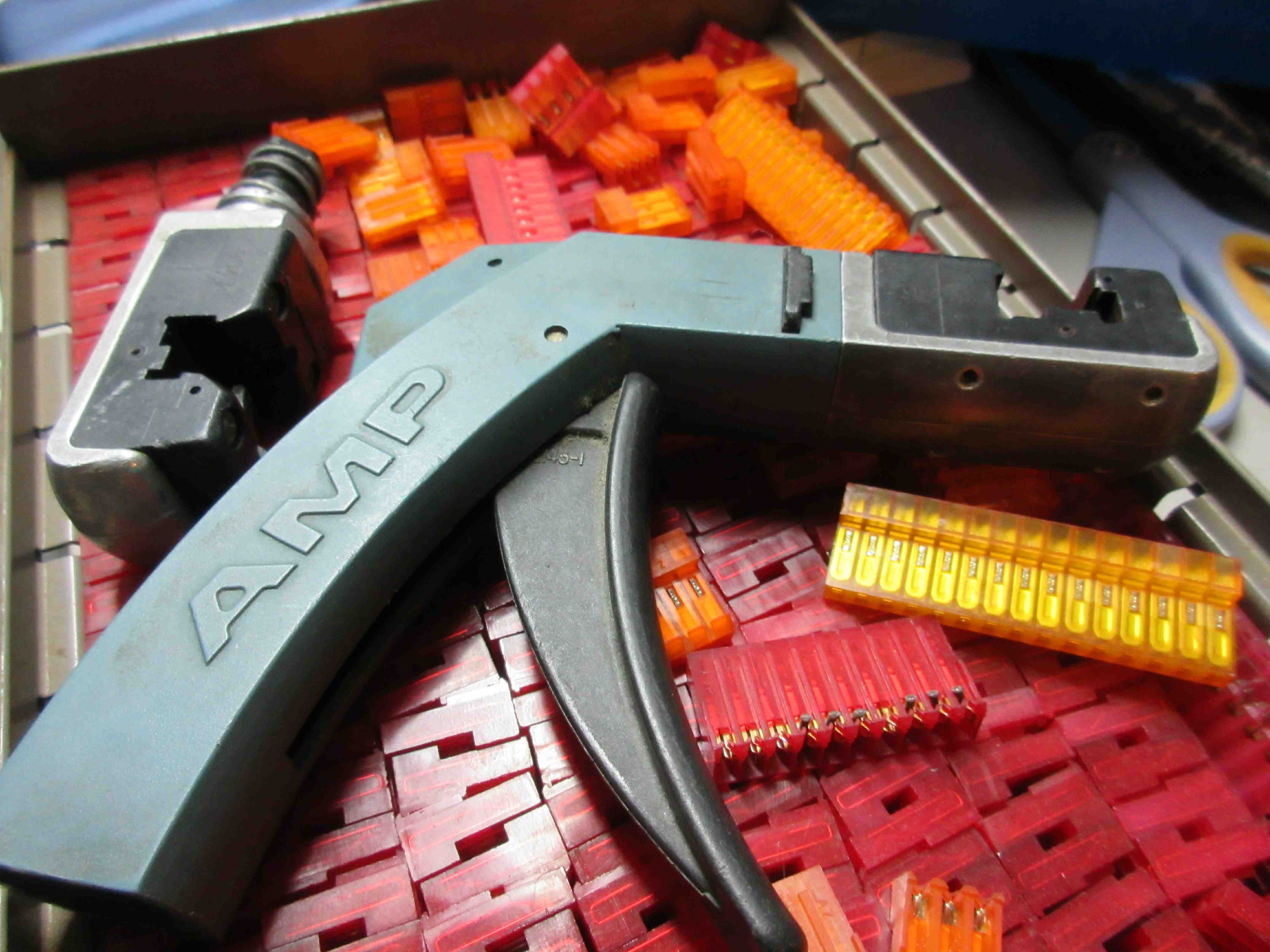

The only problem is that you need this special tool to correctly crimp the wire inside. Unless you can mimic the 3 prongs that push the wire in as shown in Pic 3?
-Josh
Date: Wed, 17 Jun 2015 15:36:01 -0700
From: jeffrey.h...@gmail.com
To: n8vem...@googlegroups.com
Subject: [N8VEM-S100:7235] Identify Eagle Spirit II molex connector
--
You received this message because you are subscribed to the Google Groups "N8VEM-S100" group.
To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.
-- These look like the Molex connectors but they are not. These are AMP connectors (now called TYCO).
They are called MTA connectors (Mass Termination A?). They come in .1" and .156", aka MTA-100 and MTA-156. Here's the Digikey part number: A31300-ND
The only problem is that you need this special tool to correctly crimp the wire inside. Unless you can mimic the 3 prongs that push the wire in as shown in Pic 3?
-Josh
Date: Wed, 17 Jun 2015 15:36:01 -0700
From: jeffrey.h...@gmail.com
To: n8vem...@googlegroups.com
Subject: [N8VEM-S100:7235] Identify Eagle Spirit II molex connector
Perhaps someone can help me identify this connector for the power
to the mother board on a lugable I'm trying to get running (again).
Here is a page on my wiki showing some my original first
MS/DOS computer, an Eagle Spirit II portable, and the connector.
I bought a connector from Jameco. It has the correct pitch 3.96mm and
would do with some soldering, splicing and crimping. I'd like to replace it with

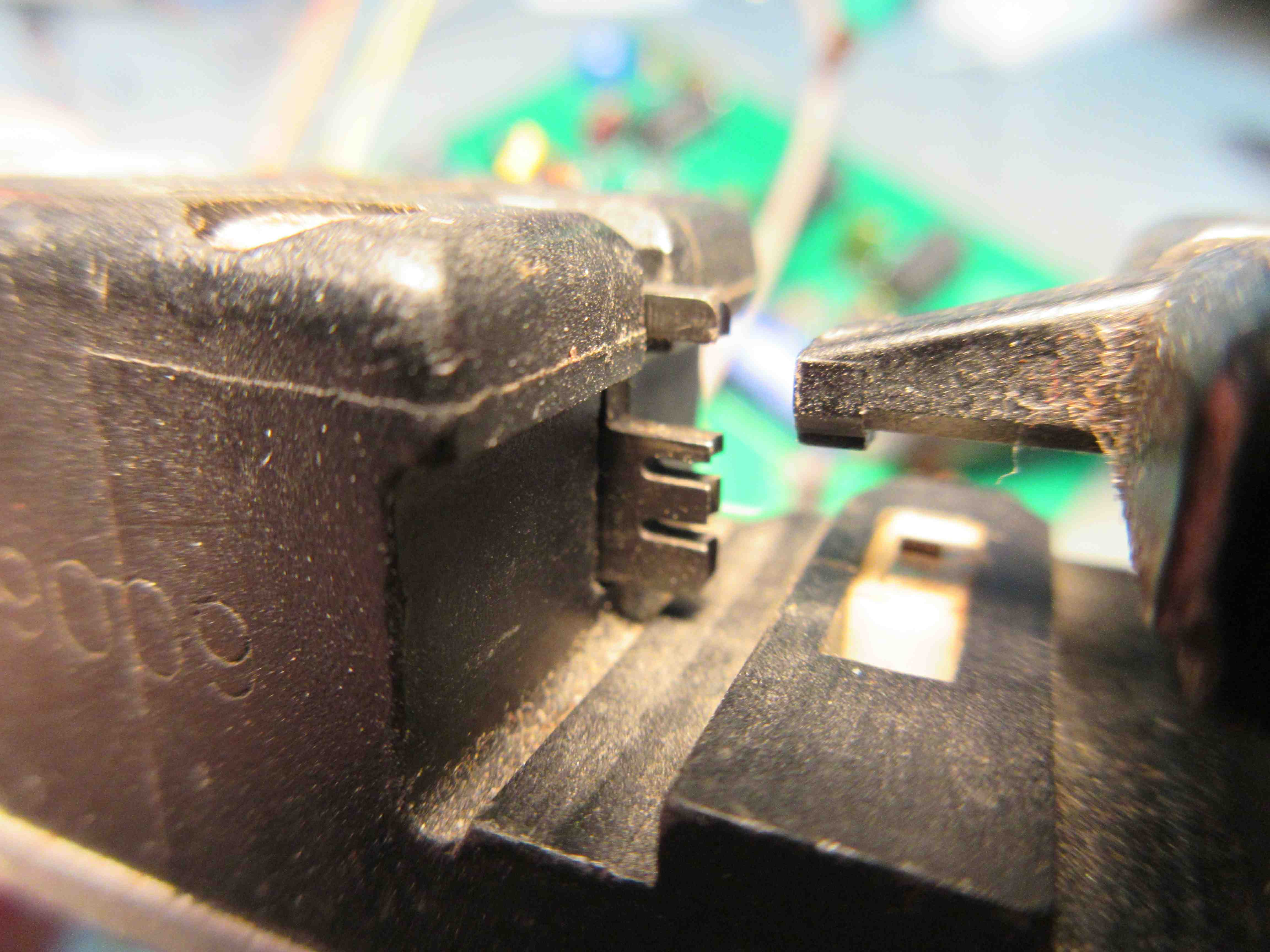

the correct connector shown in the following image. Any ideas on what this style
or series of connector is called?
--
