If we go to a pcb house, it seems to me that including the LED's in the design would make sense. Maybe different coloured board, no traces and the labels silkscreened on? I would go for 2 of these if they could serve as a cover for the front panel. How would that fit with existing chasis designs?
Are there dimensions on the dxf file? I looked for that layer but only found two. Is the drawing in imperial or metric format?
Getting way ahead of myself, and glad I haven't started building.
Matt Turner
Date: Tue, 9 Dec 2014 13:07:59 -0800
Subject: Re: [N8VEM-S100:5802] Re: NKK Switches for Mini FP
From: cap...@uxpro.com
To: n8vem...@googlegroups.com
truly appreciate the effort.

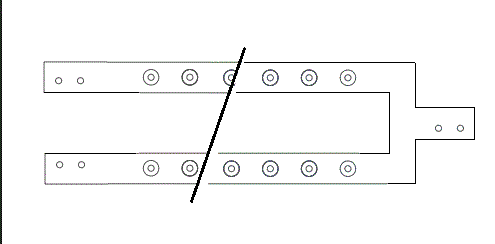

The bracket in the dxf drawing is great however I would consider it a permanent part.
The bracket has to sit under the switch flange. Screws pass through the flange
and thread into the bracket. So once the switches are soldered in the bracket can not
be removed.
I took Franks bracket which was made out of PCB material, cut a slot in one side and
then was able to lift the bracket off from underneath the switches. Had the bracket been
made out of steel or aluminum it would have gotten bent/distorted.
My modified design is basically just a flat bar 1/2 inch wide with tails that extend one
inch that can be use for mounting. You'll have to cut, trim and drill depending on your
chassis design. Two of these bars could be used for the top and bottom of the switch
which would add more strain relief.
If we want a better bracket perhaps this would be a better design. It could be used as
a soldering jig or a removable mounting bracket. It will involve more effort/expense.
I'm thinking it could be made from PCB material and we could have it done by one
of the board houses. I know my board house does these.
--
--
You received this message because you are subscribed to the Google Groups "N8VEM-S100" group.
To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.
Are there dimensions on the dxf file? I looked for that layer but only found two. Is the drawing in imperial or metric format?
Getting way ahead of myself, and glad I haven't started building.
Matt Turner
Date: Tue, 9 Dec 2014 13:07:59 -0800
Subject: Re: [N8VEM-S100:5802] Re: NKK Switches for Mini FP
From: cap...@uxpro.com
To: n8vem...@googlegroups.com
Frank did a great job on the bracket. He was kind enough to build a prototype and
shipped to me complete with screws at his own expense. Thanks again Frank. Ibe removed.
made out of steel or aluminum it would have gotten bent/distorted.
So what do ya think? Keep those suggestions coming.
Thank you.
On Tue, Dec 9, 2014 at 2:07 AM, Frank Schieschke <f.schi...@googlemail.com> wrote:
Hello,
see also this thread.
For one that is interesting by building it by yourself, i provide the DXF file attached.
Frank
--
