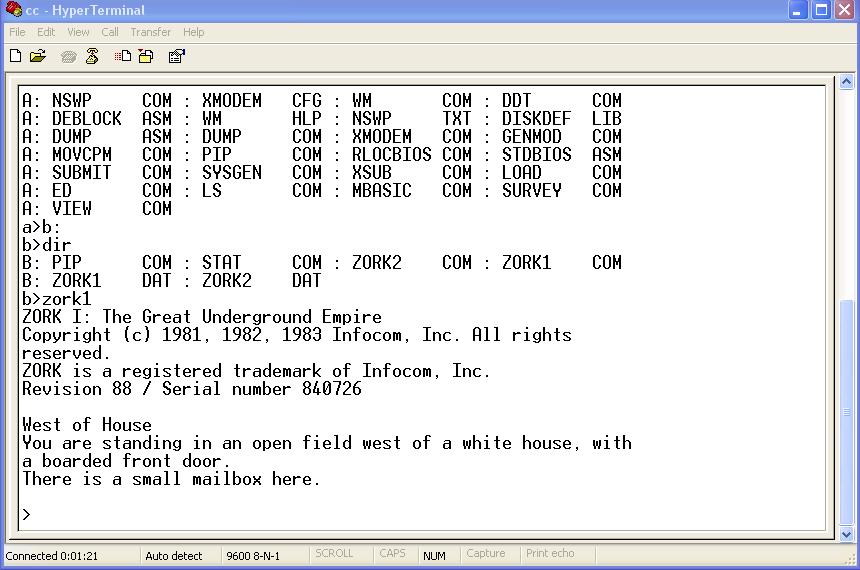

I'm using a working IMSAI chassis & power supply. Here's my session from cold power up; ALTAIR/IMSAI 8080 CPU BOARD BOOT LOADER - Josh Bensadon (Jan 3, 2015) <D> -Directory <R> -RAM Test <V> -View Load >..... BOOT BIOS.HEX, INIT_FAT Init SD Type#2 ACMD41+MBR S Type06 PBR S VOL=NO NAME SYS=FAT16 LOADING FILE BIOS.HEX -EXISTS FILE SIZE=0x00004792 Execute at:DB00 ALTAIR/IMSAI 8080 CPU BOARD - Josh Bensadon v2.3 (Jan 2015) Init SD Type#2 ACMD41+MBR S Type06 PBR S VOL=NO NAME SYS=FAT16 M - Monitor C - Boot CP/M 1 - Disk A = DISK-A.BIN -EXISTS 2 - Disk B = DISK-B.BIN -EXISTS 3 - Disk C = DISK-C.BIN -EXISTS 4 - Disk D = DISK-D.BIN -EXISTS >c <user input ='c'> ALTAIR/IMSAI CPU CARD. 61K CP/M 2.2 WBOOT a>dir <console dir> A: MON-32K COM : ASM COM : BIOS ASM : STAT COM A: CCSINIT COM : CCSYSGEN COM : CPM24CCS COM : DDT COM A: DEBLOCK ASM : CBIOS ASM : CCBIOS ASM : CCBOOT ASM A: DISKDEF LIB : DUMP ASM : DUMP COM : ED COM A: GENMOD COM : MOVCPM COM : PIP COM : RLOCBIOS COM A: STDBIOS ASM : SUBMIT COM : SYSGEN COM : XSUB COM A: LOAD COM : -CCSCPM 251 a>dir <RS-232 dir> A: MON-32K COM a>b: b>dir <console dir> B: PIP COM : STAT COM : ZORK2 COM : ZORK1 COM B: ZORK1 DAT : ZORK2 DAT b>dir <RS-232 dir> B: PIP COM b>c: c>dir <console dir> C: ZORK3 COM : ZORK3 DAT c>dir <RS-232 dir> C: ZORK3 COM c>b: <console> b>dir B: PIP COM : STAT COM : ZORK2 COM : ZORK1 COM B: ZORK1 DAT : ZORK2 DAT b>stat A: R/W, Space: 72k B: R/W, Space: 38k C: R/W, Space: 151k b>zork1 b> ----- Original Message ----- From: "Crusty OMO" <crus...@hotmail.com> To: n8vem...@googlegroups.com Sent: Thursday, February 26, 2015 8:06:58 PM GMT -06:00 US/Canada Central Subject: RE: [N8VEM-S100:6458] Re: CP/M running, But now what ? Hi Todd, That is really weird! I don't have that trouble here. Both consoles produce the same results. See picture below... all commands were entered by the Hyper terminal Console. What are you using for a back plane? Power supply? > Date: Thu, 26 Feb 2015 19:19:54 -0600 > From: litte...@mchsi.com > To: n8vem...@googlegroups.com > Subject: Re: [N8VEM-S100:6456] Re: CP/M running, But now what ? > > Josh, > > I run the console and terminal at the same time. > > I noticed this anomaly while doing "dir's" of Disk A,B,C& D > as I looked for the X-modem/Zork files you mentioned. > > When I do DIR from the console I see all files on both displays. > > When I do DIR from the terminal I see just the first file in the > directory on both displays. > > Otherwise they echo each other on display/keyboard. > > I found the Zork 1-3 files, D: was blank, but I found nothing > on the X-modem. Also I can't get zork to load... I can switch > to the drive, but when I type ZORKx it just loads from the SD and > drops to the prompt. > > Todd > > > > > > > > > > > > ----- Original Message ----- > From: "Crusty OMO" <crus...@hotmail.com> > To: n8vem...@googlegroups.com > Sent: Thursday, February 26, 2015 8:00:26 AM GMT -06:00 US/Canada Central > Subject: RE: [N8VEM-S100:6453] Re: CP/M running, But now what ? > > > Hi Jeffa, Todd, > > The latest image files on the wiki site include Martin Eberhard's X-Modem and some images with ZORK. > > Todd, I don't know why your RS-232 is only providing a partial directory.... that's very weird. Have you tried to connect the console I/O and the Terminal both at the same time? You can do this, and just watch the input from the other device. When you run DIR on the console I/O you should see the same output on both. Same goes for input from the terminal. > > The reason I prefer the terminal, is because you can use Martin's X-Modem in CP/M to upload/download files to the disk image. > > Yes, it would be nice to write some software that will read/write to the image files directly from windows, I just don't have the 16 hours to do this. Currently working on building a case for my Mark-8. > > Regards, > Josh > > > > > Date: Wed, 25 Feb 2015 20:02:46 -0800 > From: jeffrey.h...@gmail.com > To: n8vem...@googlegroups.com > Subject: [N8VEM-S100:6453] Re: CP/M running, But now what ? > > > > > > I see the monitor has a XModem UL/DL feature, or will I have to create a "DISK-A" > image and introduce my own files into it using a PC ? > > > > > Ditto for me. :-) > > > What is the procedure for introducing files into the DISKxxx images? It sure would be nice to have a chooser to copy files into the DISKxxx images from the local ms/dos, linux or osx file systems. > > > Or how about in the ROM. You put a file on the SD card and hit some menu option to save it to the currently mounted A> (or x>) drive. > > > - jeffa > -- > You received this message because you are subscribed to the Google Groups "N8VEM-S100" group. > To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com . > For more options, visit https://groups.google.com/d/optout . > > > -- > You received this message because you are subscribed to the Google Groups "N8VEM-S100" group. > To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com . > For more options, visit https://groups.google.com/d/optout . > > -- > You received this message because you are subscribed to the Google Groups "N8VEM-S100" group. > To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com. > For more options, visit https://groups.google.com/d/optout. -- You received this message because you are subscribed to the Google Groups "N8VEM-S100" group. To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com . For more options, visit https://groups.google.com/d/optout .
Attachment:
Description: JPEG image
