An important patch / update for the 80386 RAM boards.

Guys I see some of you have already gotten your boards,  that’s great.


I want to let you know that I am picking up a slight timing problem with the 32MB RAM daughter board.

When I push it to high speeds (40MHz) I find that execution of actual 80386 code in protected mode RAM on the daughter board (e.g. 2000000H)  does not reliably work.  The simple 80386 monitor test program is brutal on the hardware, since in pipeline mode it’s in a tight loop reading protected mode RAM and outputting an S100 bus character to a port.   I.e. it flipping back and forth between the two buses all the time.


I’m not seeing a character on the screen – as I should (and do, for say RAM at F0000H).  Interestingly it is alive because if you hit the normal ESC character to stop the test the monitor comes right back.  BTW, this test is done with the 80386 monitor “Y” command.  It will ask you for a RAM test location.


The problem I think  is the whole RAM chip selection cascade is too long and right on the edge in terms of timing.   With the prototype boards It seemed to work using 74S32 and 74S139’s.  Not now!  I thought it was because I was using a Cyrix 80486 chip but is seems to be a problem with the AMD 80386’s as well.


It is  interesting that display RAM, Move RAM, copy RAM , compare RAM and the likes work perfectly fine.  However these commands are less intense I suppose in switching between busses.  BTW, to state the obvious, for real mode RAM, e.g. MSDOS, etc. absolutely no problem.


The good news is there is a very simple patch that seems to take care of the problem:-


Bend out pin 12 of U23 and bridge across a small wire to its pin 13.   This eliminates the DB_ADS* signal in the RAM chip selection equation.  With this patch the board has no difficulty (overnight test) with the above 80386 Monitor “Y” command test.    The only problem is now the D1 LED stays on all the time when the board is being accessed. The other 3 LED come on fine when the appropriate address range on the board is being addressed.

I don’t have an explanation for this right now.   I do know that the address lines themselves (particularly in pipeline mode) on the 80386  are in a continuous state of flux, not latching them is probably why the LED display is strange. Clearly the address lines are correct by the time CPU RAM read or write signals arrive.  .   Also you don’t need the 74Sxx chips, the 74LS’s are fine.


Anyway just wanted to alert everybody in case you spend needless time on this.  I will look into it some more but currently I’m thinking it may later be better to do a V2 version of the board with a faster/shorter RAM chip selection circuit.   For example I just noticed bA32 and bA30 to U14 could be brought directly into U20 since bA23 and bA24 are not needed – eliminating U14A.    Will probably wait however until we do the 80486 board because that board may have even more unique requirements.

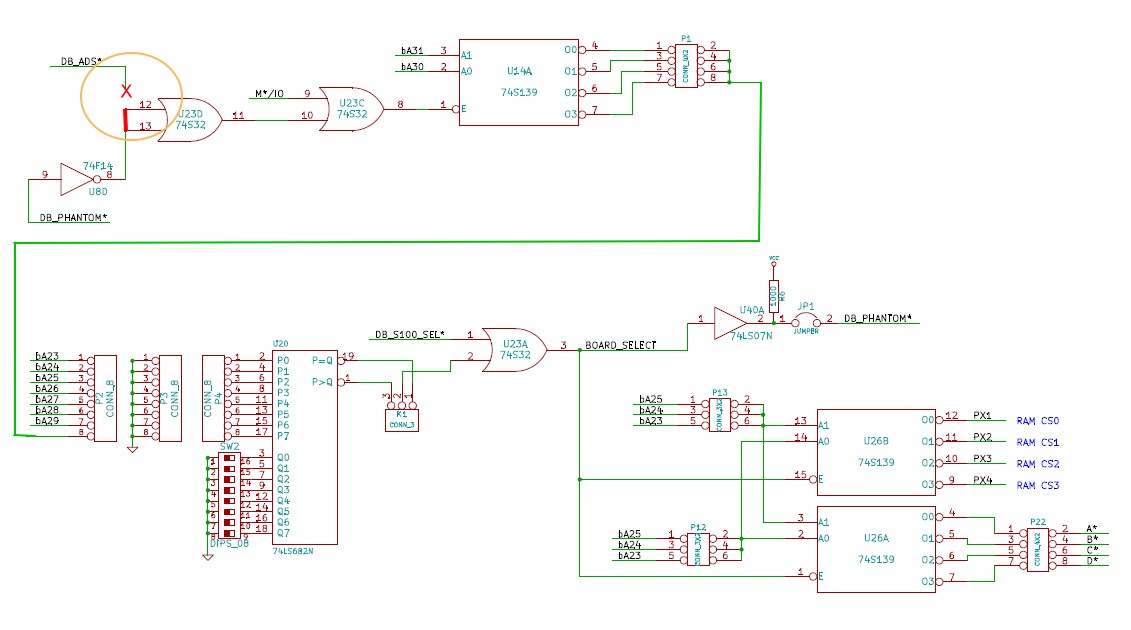

I’m attaching a picture of the change. Should be obvious to an experienced group like this I’m sure.


Finally, I have not built the 8MB RAM board yet, but since it incorporates the exact same circuit,  I suspect it will require the same patch.
