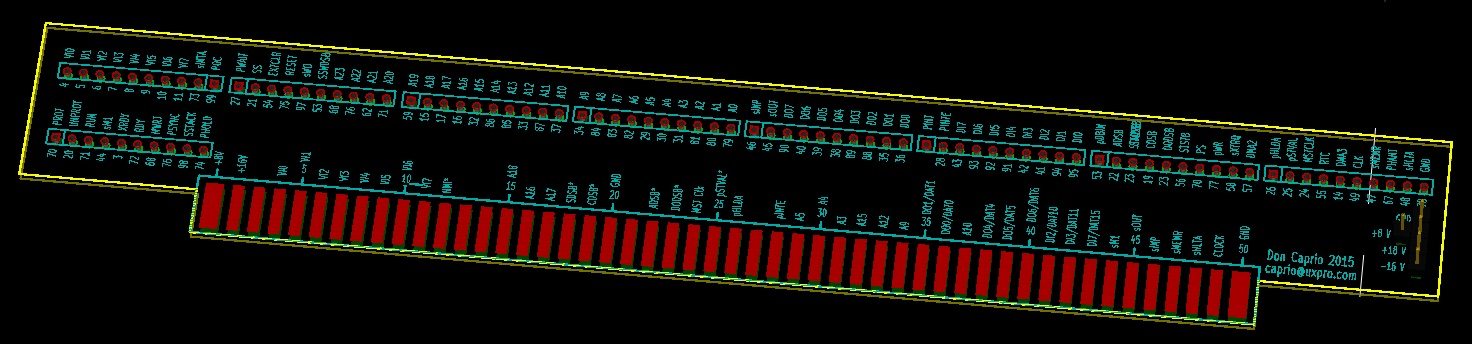

I'll take one. ----- Original Message ----- From: "Don Caprio" <ilv...@gmail.com> To: n8vem...@googlegroups.com Sent: Thursday, January 29, 2015 1:47:36 AM GMT -06:00 US/Canada Central Subject: [N8VEM-S100:6101] RFC - S100 Bus Test Point PCB When I'm doing testing on S-100 boards in my bus extender card I find it difficult to find pins especially on the back of the board. Tried various methods mostly using labels and hand writing bus pin definitions on the limited space. Have you ever wished there was a better way? Me too. Maybe there is a better way. Perhaps there's a better mouse trap but I came up with this simple PCB design that you can mount in a bus extender card to make life a little easier. Curious if any of you would find this useful. Might be a bit of an overkill since were really only interested in a handful of bus signals, but I tried to cover all the bases. Some of the more sophisticated boards are making use of more signals and expanded bus addressing. I'll be ordering a limited quantity for myself and would be happy to include others. The board would be about $3.50 with qty 25 pricing, $2.00 qty 50 (2 for price of 1). Thanks for your feedback. -- Don Caprio ilv...@gmail.com -- You received this message because you are subscribed to the Google Groups "N8VEM-S100" group. To unsubscribe from this group and stop receiving emails from it, send an email to n8vem-s100+...@googlegroups.com . For more options, visit https://groups.google.com/d/optout .
Attachment:
Description: JPEG image
