RE: [N8VEM-S100:2946] Re: Mini Buffered Prototype board (Sea of PTH)

Hey Josh!
Just checking, but have I paid? I believe I was down for two boards, in Canada.
Matt Turner

From: crus...@hotmail.com
To: n8vem...@googlegroups.com
Subject: RE: [N8VEM-S100:2946] Re: Mini Buffered Prototype board (Sea of PTH)
Date: Wed, 26 Mar 2014 21:52:24 +0000

Hi Guys,

The boards are made, they look great.

I'll be shipping them out tomorrow for those who have paid.

I tested the 10mil fuse link, but to my surprise, it passed 5 amps (the most my bench supply puts out) but did not blow.
It did get hot, but not enough to burn my finger.  I'll try it later with a SLA battery, to see where it pops.  I don't know much about fuse building, my guess is the length of the conductor has a role to play, but for sure this link will blow before it damages the trace.

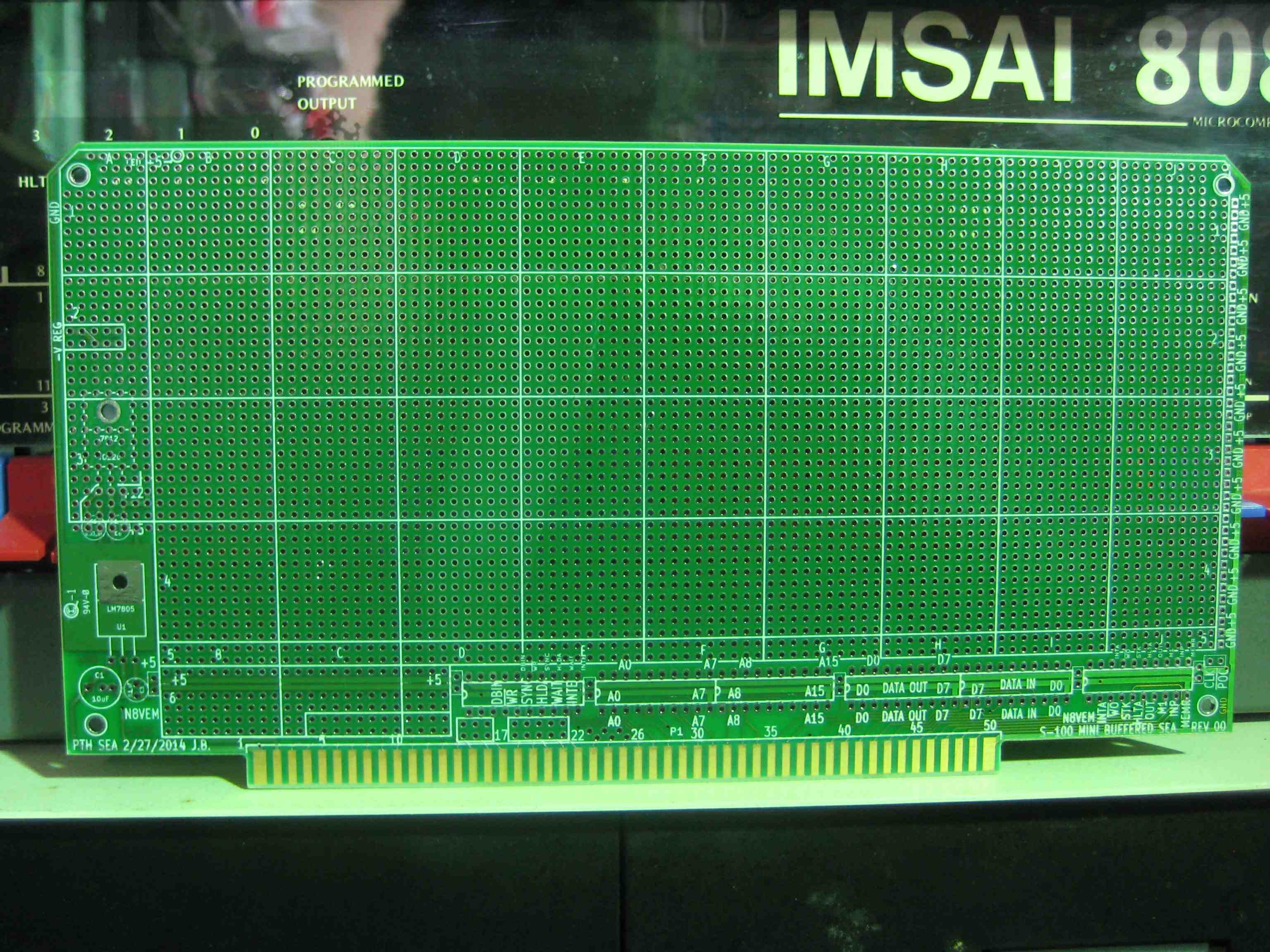

Here's a pic of the board (IMSAI 8080 not included).

Josh Bensadon
